25.9.5 Display/Save in CSV (Custom Settings)

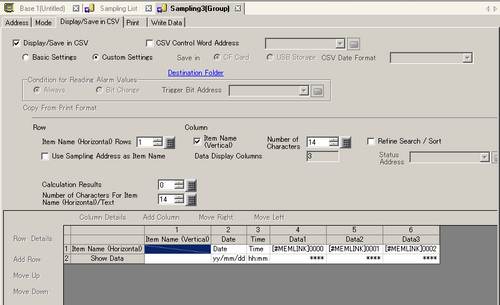

Display/Save in CSV

Specifies whether to display the sampling data on the display unit's screen or to save to an external storage.

When you display using the Sampling Data Display, or save the data to the external storage, you must check and set the format.

Basic Settings/Custom Settings

Select the format setting mode.

Basic Settings

Use a preset format to easily configure settings.

Custom Settings

Set a customized format.

CSV Control Word Address

Specifies whether to save as a CSV file. If so, set the control address to write the data to an external storage.

Two sequential word addresses are automatically used as the area to write the command and its result (status), and File (the *****portion in "SA*****.csv".) The file number can be from 0 to 65535.

25.12.5 Saving to CSV

Save in

Select the save destination for the sampling data.

CF Card (or SD Card)

Write data to a CF card (or a SD card).

USB storage

Write data to a USB storage device.

CSV Date Format

Select the [CSV Date Format] from [yy/mm/dd], [dd/mm/yy], [mm/dd/yy], [20yy/mm/dd], [dd/mm/20yy], [mm/dd/20yy], or [mm/dd]. "yy" displays the last two digits of the year, and "mm" and "dd" use two digits to display the month and date.

To read log data from the CF card using Pro-Server EX (upload GP log data and read as Excel report), select [yy/mm/dd]. If you select an option other than [yy/mm/dd], the date may be read incorrectly.
When using the CF Sampling Data File Collection Action of Pro-Server EX MES application (before V1.32), select [yy/mm/dd]. If you select an option other than [yy/mm/dd], either an error will occur or the incorrect date is saved in the database.

Destination Folder

The following dialog box appears.

The following section lists models that support partitioning the destination folder.
1.5 Supported Features

Set number of files in destination folder on external storage

Select whether or not to partition the destination folder for the alarm history data and sampling data.

You can use the [Number of files per folder] field to control the number of files in one folder.

For example, [Number of files per folder] = [100], save sampling group 1 to CSV

Folder	File that is saved
\SAMP01\00000	SA00000.CSV to SA00099.CSV
\SAMP01\00001	SA00100.CSV to SA00199.CSV
:	:
\SAMP01\00655	SA65500.CSV to SA65535.CSV

Refer to the following for information on destination folder and file names.
5.7.1 Destination Folder and File Name
The setting applies to both alarm history and sampling data. You cannot set up the file/folder partitioning for only one of these features or set up different file numbers.

Number of files per folder

You can select the number of files in a folder, from [50], [100 (recommended)], [150], [200], [250], [300], [350], [400], [450], or [500].

When you select [100 (recommended)], the speed of the save process is faster compared to folder content that is divided.

The file number (last 5 characters of the file name) defines the destination folder. The number is not used to count the number of files in the folder, as the file number can be larger than the number of files in a folder.

Condition for Reading Alarm Value

When you enable [Alarm Settings] with the [Alarm] tab in the [Data Settings], and set [Address] in the [Alarm Action], you set the conditions for reading that address.

Always On

Continually read the alarm address.

Bit Change

Read when the [Trigger Bit Address] is ON.

Trigger Bit Address

Set the address that controls the timing for reading the alarm address.

Copy From Print Format

When the print format is set on the [Print] tab, copy the settings from the [Print] tab. Use this feature when you want to display/save in CSV using the print format.

The border row and border column are not copied.

Row

Item Name (Horizontal) Rows

The number of item name rows can be from 0 to 3.

"Date" and "Time" will be automatically displayed in the first row of the Date and Time columns.

If you are using the Refine Search/Sort function, you must specify more than one row in [Item Name].

Use Sampling Address as Item Name

If the [Item Name (Horizontal) Rows] is not "0", select whether or not to display the sampling address as the data column item name. If selected, cells that have an address displayed in the Preview area cannot be edited.

Data Display Rows

If in the [Mode] tab's Extended area the [Overwrite old data after finishing the specified cycles] check box is selected, set the number of data rows from 1 to the [Occurrences] set on the [Mode] tab.

Adjust the number of data display rows to the [Occurrences].

Calculation Results

The number of calculation rows can be from 0 to 4. In the Calculation rows, you can display values (Total, Average, Max, Min) calculated from data from the designated [Occurrences].

The calculation data will not be exported to the CSV file, even if you have created a Calculation row.
If you selected [Enable multiple data types] in the [Address] tab, the Calculation row remains empty, unless you set it as a Numeric Data column.

Item Name (Horizontal)/Text Characters

Set the number of display characters for the item names (horizontal) and text rows from 1 to 100 single-byte characters.

When you double-click an item name row/text row cell in the Preview area, you can input text that is within the number of characters set here.

Column Settings

Item Name (Vertical) Characters

Designate whether or not to display the item name column.

If designated, set the number of item name column's characters from 1 to 20 single-byte characters.

Data Display Columns

Displays the number of data columns.

Refine Search/Sort

Define if you will use the Refine Search function, which displays only data records that match specified conditions, and the Sort function, which re-order data records according to the condition specified.

For a list of models that support the Refine Search/Sort function, please see the following:
1.5 Supported Features

In the Sampling Data Display, when you touch the name field of an item, the Search dialog box appears.

Unlock

Clears the search/sort applied to the selected column.

Ascending

Sort from the smallest value to the largest.

Descending

Sort from the largest value to the smallest.

Filter

The Search Condition Entry keypad appears. See the following for information about the Search Condition Entry keypads.

20.10.3 Entering Search Conditions

Status Address

Specify the address where the search results and operation status are stored when you are using the Refine Search/Sort function. Use a sequence of 3 words.

Status

Error codes are as follows:

Error code (decimal)	Description	Details
0000	Completed Successfully	The Search/Sort process is successfully completed.
0001	Search in progress	The Search/Sort process is successfully started.
0100	No target record error	As a result of search, no matching data record was found.
0101	Search Menu Display error	Other function is displaying the Search menu. Or, the Search menu cannot be displayed because all windows are in use.
0102	Search Start error	Search cannot be performed because other function is using Search/Sort or search results are currently displayed.
0200	Registered Size error	The amount of sampled data is exceeding 1M bytes.
65535	Unexpected error	Search failed because of an internal issue.

Search Hits

After the Search/Sort operation, the number of matching data records is stored.

Number of Refine Search columns

The number of columns with [Refine] specified is stored.

Column Settings/Row Details

Select and click the column, calculation row, or item name (vertical)/(horizontal) in the Preview area, and a dialog box to configure detailed settings appears.

25.9.5.1 Display/Save in CSV (Custom Settings)/Date

25.9.5.2 Display/Save in CSV (Custom Settings)/Time

25.9.5.3 Display/Save in CSV (Custom Settings)/Data Settings - Data Type

25.9.5.4 Display/Save in CSV (Custom Settings)/Data Settings - Style

25.9.5.5 Display/Save in CSV (Custom Settings)/Data Settings - Alarm

25.9.5.6 Display/Save in CSV (Custom Settings)/Calculation Settings - Data Type

25.9.5.7 Display/Save in CSV (Custom Settings)/Calculation Settings - Style

25.9.5.8 Display/Save in CSV (Custom Settings)/Calculation Settings - Alarm

25.9.5.9 Display/Save in CSV (Custom Settings)/Item Name (Vertical/Horizontal) Settings

Add this Column

Insert a column in front of the column selected in the Preview area. Choose from a [Date], [Time], [Data], or [Text] column. You can directly input the desired text in the [Text] column.

When inserting a [Data] column, the [Select Display Data] dialog box appears where you can select a data column (address) to add.

To add multiple addresses, drag the mouse to select consecutive columns. If you click columns to add while pressing the [Ctrl] key, you can select separate addresses.

If you save to an external storage (CSV output), the output does not include the [Text] column. Also, when [Date] line and [Time] line are multiple set, each line is output to a fixed position.

Move Right/Move Left

Move the column you selected in the preview area to the right/left.

Add this Row

Insert a [Text] row in front of the row selected in the Preview area. You can directly input the desired text in the [Text] row.

If you save to an external storage (CSV output), the output does not include the [Text] column.
When multiple calculation rows are set, you cannot input a Text row between two calculation rows.

Move Up/ Down

Move the [Text] row selected in the Preview area upward/downward.

Preview area

Displays the set contents with the selected format.

If [Overwrite old data after finishing the specified cycles] is selected on the [Mode] tab's Extended settings, only one data row will display. If the [Overwrite old data after finishing the specified cycles] check box is cleared, the data rows equal the designated [Occurrences].

When [Overwrite old data after finishing the specified cycles] check box is selected

When [Overwrite old data after finishing the specified cycles] check box is cleared
