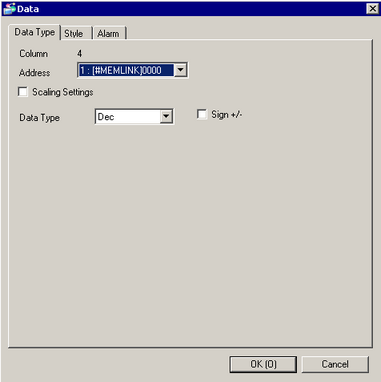

Select a Data column in the Preview area and click [Column Settings]. The following dialog box appears.
The dialog box varies depending on the data type.
25.9.5.4 Display/Save in CSV (Custom Settings)/Data Settings - Style
Column
Displays the selected column's number.
Address
Displays the selected column address. Display the list and you can change the registered address in the sampling group.

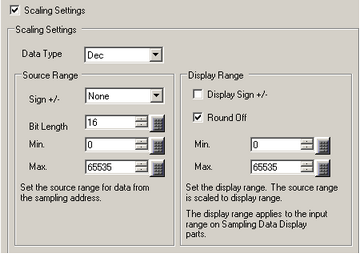

Scaling Settings
Specifies if you want to configure scaling settings. If designated, the following setting items will appear.
The [Source Range]/[Display Range] values are those specified in [Data Settings], which opens when you click [Data Type Settings] in the [Basic] mode.
25.9.4.1 Display/Save in CSV/Data Settings - Data Type
Data Type
Choose the data type from [Dec], [BCD], [Hex], or [Float].
[Float] can only be selected when the set [Bit Length] is [32 Bit] on the [Address] tab.
When [BCD] is selected, sampling data containing the digits A-F (hexadecimal) other than BCD will be displayed/saved in CSV with "----" (Number of digits "-").
Sign +/-
Designate whether or not to attach a minus sign to data. This can only be set when the [Data Type] is [Dec].
This is fixed when the [Data Type] is [Float].
Round Off
Designate whether or not to round off fractional values when converting input values to the display range. Fractional values are truncated if rounding off is not selected. This setting is available when [Data Type] is [Float].
