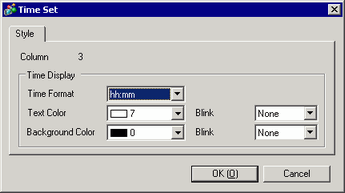

Select a Time column in the Preview area and click [Detail Settings]. The following dialog box appears.
Column
Displays the selected column's number.
Time Format
Select the time format [hh:mm], [hh:mm:ss], or [hh:mm:ss.ms]. "hh" displays the hours, "mm" displays the minutes, and "ss" displays the seconds, all using two digits. "ms" uses three digits to display the milliseconds.
No matter which display format you select, it is output in CSV format as [hh:mm:ss] when you save to an external storage. (If the sampling cycle unit is set [100ms], output is [hh:mm:ss.000].)
Text Color
Select the text's color.
Background Color
Set the background color for the text.
Blink
Select the blink and blink speed. You can choose different blink settings for the [Display Color], and [Background Color].
Depending on your display unit's model and [Color] settings, you may not be able to set Blink (from the [Project] menu, point to [System Settings] and click [Display Unit]).
