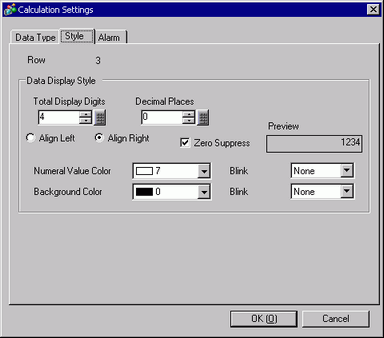

Total Display Digits
Select the number of display digits for the calculation data from 1 to 17. This can be designated to within the number of characters set in [Item Name (Horizontal)/Text Characters]. The numbers displayed after the decimal point are also included in the number of digits.
(For example, Total Display Digits is "5", and the Decimal Places is "2")
Decimal Places
Set the number of display digits after the decimal point: 0 to [Total Display Digits]-1.
This cannot be set when the [Data Type] is [Hex].
Align Left/Align Right
Select the calculation data display position.
Zero Suppress
If this option is selected, leading zeros are not displayed.
For example, Number of Display Digits = 4
Preview
Preview the selected style.
Numeral Value Color
Set the calculation data color.
Background Color
Set the calculation data background color.
Blink
Select the blink and blink speed. You can choose different blink settings for the [Numeral Value Color] and [Background Color].
Depending on your display unit model and [Color] settings, you may not be able to set Blink (from the [Project] menu, point to [System Settings] and click [Display Unit]).
