31.5.12 I/O Driver Settings Guide - STD Driver

When using the LT display unit, in the System Settings click [I/O Driver] to display the following window.

For information on standard input/output and special I/O, please refer to the following:

31.5.12.1 Standard Input/Output

31.5.12.2 High Speed Counter Unit

31.5.12.3 High Speed Counter (2-Phase)

31.5.12.4 PWM Output

31.5.12.5 Pulse output

31.5.12.6 Pulse Output (2 Phase)

31.5.12.7 Pulse Catch

31.5.12.8 Voltage/Current Input

31.5.12.9 Voltage/Current Output

31.5.12.10 Temperature Input

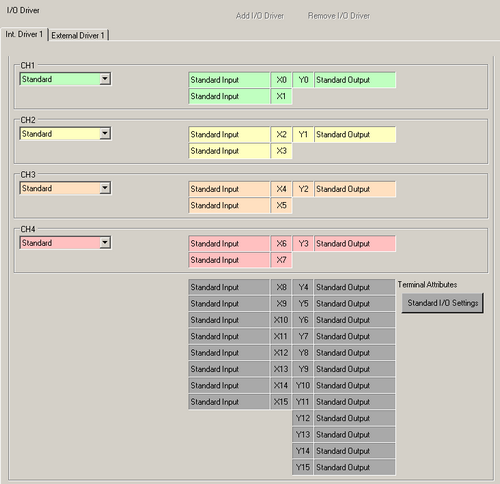

LT3000 Series

CH1 - CH4

Select the I/O to use for each channel. A button appears after the selection. Click the button to specify detailed settings.

Terminal Attributes

Click the settings button to specify detailed settings for the I/O. Terminal attributes for special I/O are displayed when you select special I/O from the channel.

Enabling 2-Phase Counter(s)

Select this option when using 2-phase counter(s), and specify the number of counters.

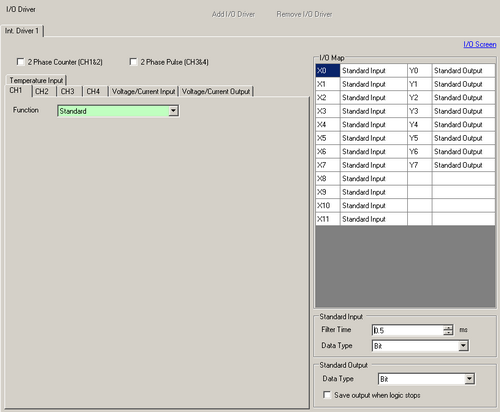

LT4000 Series

2 Phase Counter

Select when using the 2-phase high speed counter. You can configure the 2-phase high speed counter settings in the [CH1&2] tab.

2 Phase Pulse

Select when using 2-phase pulse. You can configure the 2-phase pulse settings in the [CH3&4] tab.

CH1 to CH4 / Voltage /Current Input / Voltage/Current Output / Temperature Input

Click the tab of I/O you want to use to specify detailed settings.

I/O Map

Used to check which input/output terminal the setting is applied to.
