31.5.12.2 STD Driver - High Speed Counter

LT3000 Series

Channel

Select an I/O type from the top section. Select an input type from the bottom section.

Displays the terminal mapping.

Match

Select when synchronizing output.

Terminal Attributes

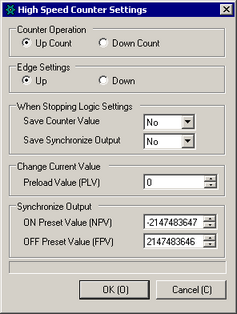

Click [High Speed Counter Settings] to specify detailed settings.

Counter Operation

Select a counter operation.

Edge Settings

Select the edge detection method.

Save Counter Value

Select whether or not you want to retain counter values when the logic is stopped.

Save Synchronize Output

Select whether or not you want to retain the synchronize output state when logic is stopped.

Preload value

Enter the value you want to set as the current value for counter.

ON Preset Value / OFF Preset Value

Enter the value that is used to change the output value when using Synchronize Output.

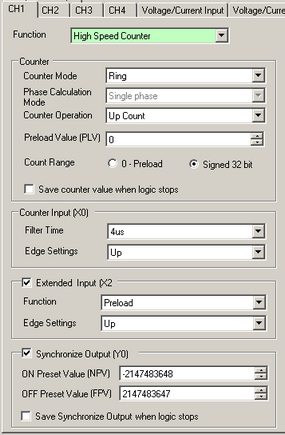

LT4000 Series

Counter Mode

Select a counter mode.

Performs count up or count down one time. The count operation ends when the Current Counter Value reaches either the minimum or maximum value. To start counting again, clear the Current Counter Value with the system variable (#L_ExIOCntInCtrl).

Repeatedly runs the count operation. When the counter reaches the maximum or minimum value in the counting range, the counter is reset to either the minimum or maximum value then continues counting.

Pulse count and signal frequency within the Time Base period is stored in the Current Counter Value. When the period set in the Time Base elapses, the Current Counter Value is updated.

Counter Operation

Select the counter operation.

Preload Value

Enter the value you want to set as the current value for counter. Select when [Counter Mode] is set to [Ring] or [Linear].

Count Range

Select the range for the count. Select when [Counter Mode] is set to [Ring] or [Linear].

Data Type

Select the count unit. Select when [Counter Mode] is set to [Sampling].

Pulses entered within the Time Base period are stored in the Current Counter Value.

The pulse signal frequency input within the Time Base period is stored in the Current Counter Value. The unit is in Hz.

Time Base

Enter the intervals at which you want to count the input signal's pulses or frequency. Select when [Counter Mode] is set to [Sampling].

Save counter value when logic stops

Select whether or not you want to retain counter values when the logic is stopped.

Counter Input

Setting used to count input signals.

Filter Time

Select the Filter Time for the input signal. Counts input signals that change ON/OFF at intervals longer than the Filter Time.

Select the timing for counting the Edge Settings input signal.

Select the timing for counting input signals.

Counts the positive transition of pulse inputs.

Counts the negative transition of pulse inputs.

Extended Input

Select when using extended input.

Feature

Select the function to run when you receive a signal from the input terminal.

Writes the Current Counter Value to the system variable (#L_HSC*_PLV).

Stores the Current Counter Value in the system variable (#L_HSC*_PSV).

Clears the Current Counter Value to zero (0).

Edge Settings

Selects the timing on when to run the function.

Runs the function when a positive transition in the Extended Input is detected.

Runs the function when a negative transition in the Extended Input is detected.

Runs the function when either a positive or negative transition in the Extended Input is detected.

Synchronize output

Select when synchronizing output.

ON Preset Value / OFF Preset Value

Enter the value that enables changing the Synchronize Output.

Save Synchronize Output when logic stops

Select whether or not you want to retain the synchronize output state when logic is stopped.
