LT3000 Series
Channel
Select an I/O type.
Displays the terminal mapping.
Terminal Attributes
Click [PLS Settings] to specify detailed settings.
Pulse Output
Enter the pulse output.
Output frequency
Enter the output frequency.
Acceleration/Deceleration time
Enter the acceleration and deceleration time for pulse output. The same setting is used for the acceleration and deceleration time.
Initial Output Frequency
Enter the initial output frequency value.

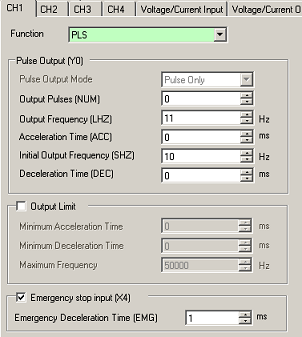

LT4000 Series
Output Pulses
Enter the pulse output.
Output frequency
Enter the output frequency.
Acceleration time
Select the pulse output acceleration time.
Initial Output Frequency
Enter the initial output frequency value.
Deceleration time
Select the pulse output deceleration time.
Output Limit
Select this option when you want specify a pulse output limit.
Minimum acceleration time
Select the minimum acceleration time for pulse output.
Minimum deceleration time
Select the minimum deceleration time for pulse output.
Maximum frequency
Enter the maximum output frequency value.
Emergency Stop Input
Select to stop output with an input signal.
When input is turned ON, the pulse output stops.
[Emergency Stop Input] is available for one channel only. You cannot set it up simultaneously for multiple channels.
Upon performing an emergency stop, there may be cases where the pulse output count stored in the system variable (#L_PLS*_NUM) might actually be lower than the actual output.
Emergency deceleration time (EMG)
Sets up the deceleration time when an emergency stop is required.
When [Deceleration Time] is 0 ms and an emergency stop takes place, the [Emergency deceleration time] is ignored and a sudden stop takes place at 0 ms.
