Can I dim the screen of the touch operator interface after a certain period of time?

Using the [Dimmer] function allows you to get the screen dimmed automatically when the screen of the touch operator interface is not operated for a certain period of time.

Configure this setting in either way below;

Offline Screen of the touch operator interface (-> Setting Procedure)
Setting on GP-Pro EX (-> Setting Procedure)
*After changing the setting, you need to transfer the project file again

NOTE

-	If you configure the dimmer setting on the offline screen only, the setting on GP-Pro EX is overwritten when the project file is re-transferred. (The setting is disabled if the standby mode is not set.) If you re-transfer the project file, we recommend you to set the dimmer function also on GP-Pro EX.
-	Reference: Can I reduce power consumption of the touch operator interface? Can I turn off the screen of the touch operator interface after a certain period of time?

<Setting on Offline Screen>

Go to offline mode and touch [Display Unit] on the item changeover switch.

-> How to enter offline mode

Touch [Screen Settings].

Touch

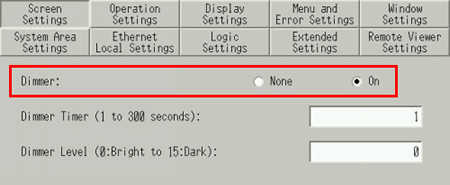

Select [On] for [Dimmer].

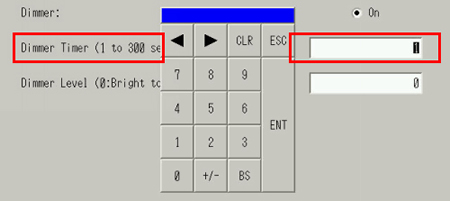

Touch the [Dimmer Timer (1 to 300 seconds)] field to display the tenkey pad.
Enter the number of seconds from the last touch screen operation until the screen is dimmed. Touch the [ENT] key.

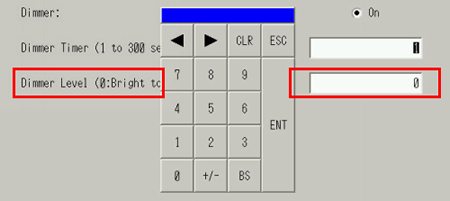

Touch the [Dimmer Level (0:Bright to 15:Dark)] field to display the tenkey pad.
Enter the brightness level when the screen is dimmed and touch the [ENT] key.

[Exit] displays the [Exit] dialog box. Touch [Save changes and exit].

The [Save File] dialog box appears and then the touch operator interface unit restarts. The setting is complete.

<Setting on GP-Pro EX>

Click [Project]->[System Settings]->[Display Unit].

Select the [Display Settings] tab.

<Setting Example>
The screen is dimmed 30 seconds after the last touch screen operation at the level 10. For input, see below;

Click [Save] on the [Project] menu to save changes.

Transfer the changed project file to the touch operator interface.
