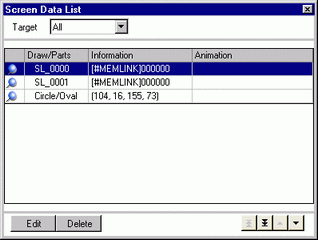

3.9.3.5 Screen Data List Window

The relationship between the processing order of parts disposed and the [Screen Data List] display order is as follows.
The order in which parts are processed is the same as the [Screen Data List] when you set the [Target] to [Parts]. The same is true for switches set up with multiple functions.
The processing for when a switch is touched and the processing for parts on the screen may drift slightly. There are timing issues between when the switch is touched and when the touch is detected.
The first time after a screen change, the display order is processed the same as the [Screen Data List], when [Target] is set to [All].
Drawings are processed once after a screen change in the same order as the [Screen Data List] when you set the [Target] to [Draw]. From the second time onward, only parts need to be processed.
As a result, when the image changes as a result of parts movement, the most recent drawings display.

Window Type

Select the targets to display in the list from [All], [Draw], or [Parts].

Target Assistance

Select the type of targets to display in the list when the [Target] is [Draw] or [Parts].

Display List

Displays a list of the parts and drawings on the screen. Double-click a row to open the corresponding settings dialog box. You can also select a row and right click to copy, paste and do other operations. When rows are colored gray, it indicates they are hidden from the display. You can click to display these rows. For more details on the Display Navigator, see the following.

3.1 Naming Areas in the GP-Pro EX Main Window

For cases in which animation is configured and Expert Mode is enabled, a layer separator is displayed between the Base Layer and the Front Layer.
21.8 About Object Position and the Layer Separator When Setting Up Animation

Draw/Parts

Displays the Draw type when the [Target] is [Draw] or the Parts ID number when the [Target] is [Parts]. When an item is grouped, displays "Group Object". Displays "D-Script" when [D-Script] is selected.

Information

Displays the coordinate when the [Target] is [Draw] or all the Parts' addresses when the [Target] is [Parts]. Displays the ID number and comment when [D-Script] is selected or the coordinate and all the addresses in a group when Group Object is selected.

Animation

Icon for the selected animation feature is displayed. indicates the animation feature is being used in the part or drawing even when it has not been set directly in the animation. This icon is displayed in the following cases:

When the plate in the data display or message display is set to transparent
When using an animation in a call screen or window part called screen

For more details on the animation feature, refer to:

21.1 Animation - General

21.7 Settings Guide

Show Fixed Pins

Shows whether or not the part or drawing is fixed. For details on the fixed pins , see the following.

8.2.14 Protecting Objects That You Do Not Want to Edit

Edit

Displays the setting dialog box for the Part/Draw selected on the display list.

Delete

Deletes the Part/Draw selected on the display list.

To Top / Move up

Moves the item selected on the display list either to the top or up one row.

To Bottom / Move down

Moves the item selected on the display list either to the bottom or down one row.
