33.2.1 Procedure - Checking Display Unit operations on the Computer

1. Open the project file you want to simulate and from the [Project (F)] menu, select [Simulation (L)].



   • You can also use the keyboard shortcut Ctrl+T to start simulation.

   • You can also click from the State bar to start simulation.

2. [GP-Pro EX Simulation] is displayed. You can check the operation of the project file in progress through [GP-Pro EX Simulation] located at the top of the screen.




   • When you edit the project and run simulation again, close [GP-Pro EX Simulation]. Do the same when running simulation for a different project.
     After editing or opening a project that you want to run simulation on, update the contents in [GP-Pro EX Simulation] using one of the following.

   • From the [Project (F)] menu, select [Simulation (L)]

   • Press [Ctrl]+[T]

   • Press [F12]

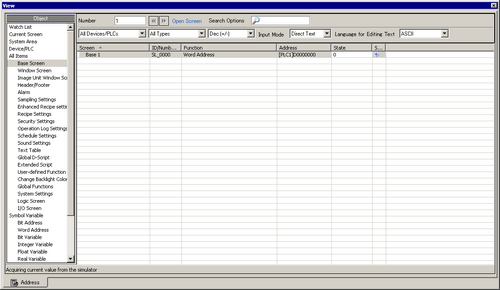

3. [Address View] allows you to display a list and edit the current value of the virtual device/PLC address used for simulation. Select the item you want to view from [Object]. (For example, Base Screen)




   • If [Address View] does not display, select [Preview (W)] and then [Address(D)] from the [View(V)] menu, or click .

   • If [I/O View] or [Logic View] is displayed over the [Address View], click the [Address] tab to bring [Address View] to the front.

4. In the [Address View], set the screen number from [Number] to switch the address display screen.
   (Example: 10)

5. To toggle the bit address ON or OFF, click in the [State] field. To change the value in a word address in [Address View], select the value in the [State] field and make the change.

6. Select [Exit from Simulation (X)] from the [Simulation (S)] menu or click to exit the simulation feature. [GP-Pro EX Simulation] and [Address View] will be closed.



   • The data that is saved in the backup memory (SRAM) during simulation is deleted after simulation ends. To save a backup of PLC device values, from the [Options (O)] menu select [Configure Memory (M)] or click . If you select the [Backup the PLC device] check box in the [Device Memory Settings] dialog box, the data of the same address can be read when the same file is re-opened.
