30.4.1.4 Cutting Rungs

When you want to move a created rung, you can save time by cutting the rung and pasting it in the desired location.

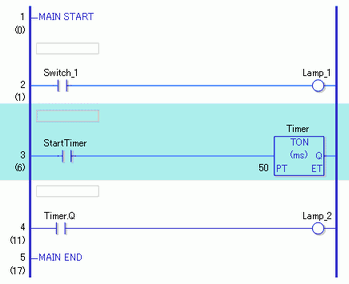

1. Select the rung number that you want to cut.




   • You can select a range to copy more than one rung at all once.
     30.4.1.7 Selecting Multiple Rungs

2. Click the icon .

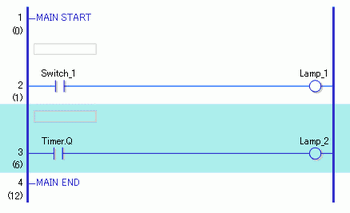

   The cut rungs are copied to the clipboard and the selected rungs are deleted.




   • You can also delete a rung in either of the following ways.

   • Right-click and then click [Delete (D)].

   • Press DELETE.

3. Paste the copied rung in the desired location.

   30.4.1.5 Pasting Rungs
