For details on the settings, see the following.
4.3 Startup Dialog Box4.4 Connection Dialog Box
For details on the settings, see the following.4.3 Startup Dialog Box4.4 Connection Dialog Box
Double-click the Camara-Viewer EX shortcut on the desktop
, or from the [Start] menu, point to [All Programs], [Pro-face], [Camera-Viewer EX] and then click [Camera-Viewer EX].
Camera-Viewer EX starts and opens the startup dialog box.
Select [Live images from a remote GP camera] and click [OK]. The connection dialog box appears.
In [GP IP Address], enter the IP address of the display unit to connect. (For example, 192.168.1.2)
Click
the drop down icon to search for a display unit connected to the network. After the search is complete, all display units on the network will be listed.
Please consult your network administrator about mapping IP addresses.

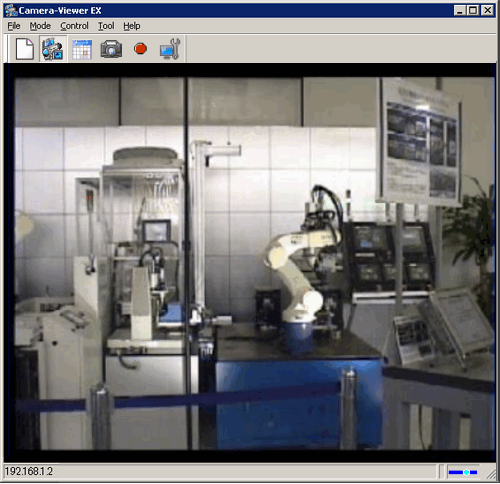

Click the [CONNECT] button to connect to the display unit defined in [GP IP Address]. After the connection is established, Camera-Viewer EX displays video from the display unit's video camera.
When you click [Capture]
, a still image of the video is saved as a JPEG file and displayed in the associated application.4.7 Screen Capture
From the [File] menu, select [Save as].
The [Save As] dialog box appears. Define the storage location and file name and click [Save].
The file name can contain up to 255 characters, including the file path and extension.
To close the project, from the [File] menu select [Exit] or click the icon in the top right corner.
Camera-Viewer EX will end.
From the next time, when you wnat to display the same video camera image from the display unit, open the saved Camera-Viewer EX settings file.
