| Precautions for disk
expansion |
|
| Applicable
Models |
| Models
with Windows XP Embedded (CF card
type) |
|
|
When an expansion disk (a hard disk,
CF card, PCMCIA, USB memory, etc.) is added to the model with
preinstalled Windows XP Embedded (CF card type), we recommend
taking the following procedure (for the setting of write
caching).
Even if the data writing to the expansion
disk looks finished on the screen, some access is still active
in the OS. Therefore, if the power is turned off at the
moment, the data may be damaged. Making a setting to disable
write caching mitigates the damage.
| Important |
| - |
There are two types of write caches: one is
used in the OS, and the other is used in the
expansion disk. There are some disks in which the
cache setting cannot be made. |
| - |
While write caching is disabled, the writing
performance may be decreased. |
| - |
Disable the EWF (Write Filter) prior to making
the cache setting.
We recommend enabling the
EWF (Write Filter) again after the setting is
done. |
| |
How to check the EWF
settings in Windows XP Embedded |
| |
How to disable the EWF
(Write
Filter) | |
|
| ■
Procedure |
|
|
|

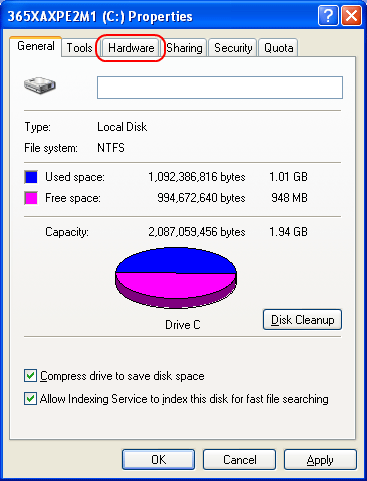

1. |
Select the expansion disk in the Explorer, and
then go to [Properties] from the [File] menu. Click the
[Hardware] tab in the Properties dialog box shown below. |
|
|
|
|
2. |
Select a hard disk in [All disk drives], and
then click [Properties]. |
|
|
|
|

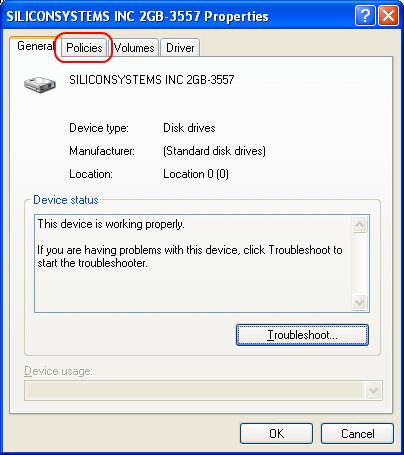

3. |
The dialog box shown below appears. Click the
[Policies] tab. |
|
|
|
|

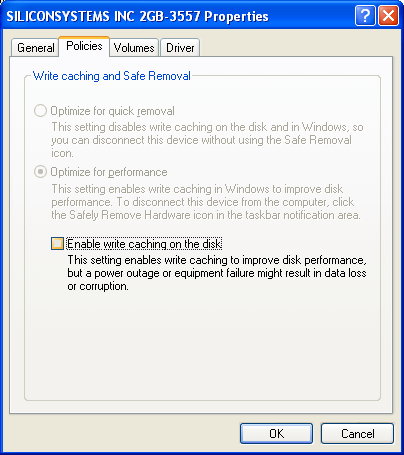

4. |
Uncheck [Enable write caching on the device]
and click [OK]. After returning to the Properties dialog box
of the hard disk, click [OK]. |
|
|

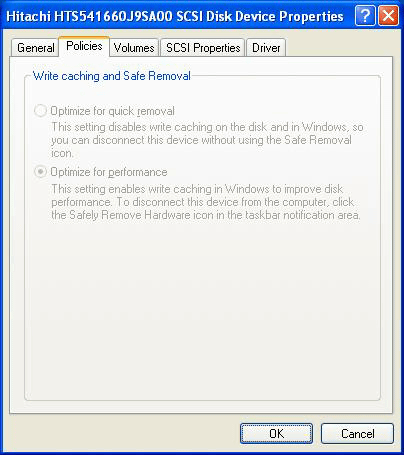

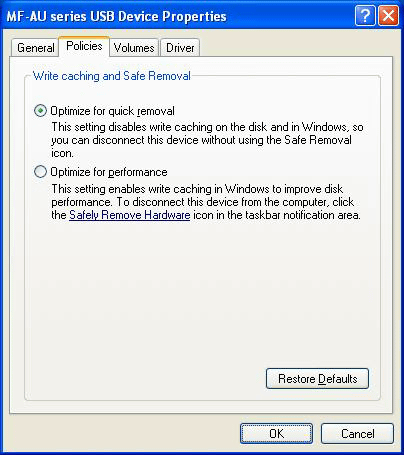

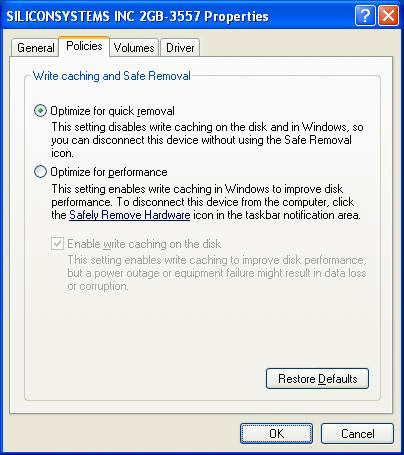

The
followings are the meanings of the messages.
| Optimize for quick
removal |
-> Disable write caching. |
| Optimize for performance |
-> Enable write caching. |

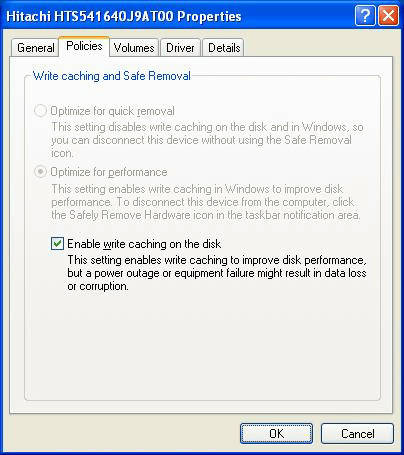

| Enable write caching on the disk |
-> Enable/ Disable write caching
(switchable by a check
box) | |
|
|
5. |
Reboot the OS. |
|
| | |
