Printing a screen from a GP unit |
![](/images/shim.gif) |
![](../../../images/shim.gif) |
|
|
With a GP unit connected to a printer, it's possible to print a screen's hardcopy, alarm messages, logging data and so on. |
|
Hard Copy of a screen from a GP unit |
It's possible to print a hardcopy of the screen currently displayed in the GP. |
|
1. |

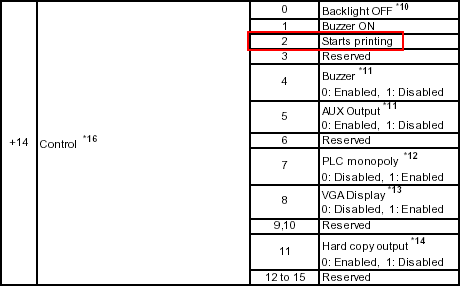

Turn ON the bit #02 of +14 in the system data area |
|
![](images/print_system_area1.gif) |
|
|
2. |

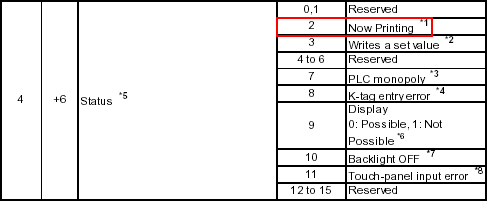

When the bit #02 of +14 in the system data area turns ON, the bit #02 of +6 in the system data area turns ON automatically. And when the hardcopy is completed, the bit #02 of +6 turns OFF automatically.
|
|
![](images/print_system_area2.gif) |
|
|
|
* While the bit #02 of +14 turns ON, the hardcopy of the screen is being performed. Be careful not to perform Change Screen or Change to OFFLINE. |
|
|
3. |
Since the bit #02 of +14 in the system data area does not turn OFF automatically, turn OFF the bit #02 of +14 on the PLC side after the bit #02 of +6 turns OFF. |
|
|
|
Supported printers? |
The printers which support the following commands are supported.
・NEC PC-PR201/PL command compatible machine
・EPSON ESC/P24-J84 compatible machine
・HP Laser jetPCL4 command compatible machine
And GP2000 series +C-Package02 (SP1) or higher can support EPSON PM/Stylus series printer.
|
‹Types whose operations have been confirmed› |
NEC Printer (monochrome laser printer)MultiWriter1250, MultiWriter210S
EPSON Printer(impact dot matrix printer) VP-1850 |
|
|
|
In the case of Memory Link Method |
When the bit #02 of +11 in the system data area is turned ON, the currently displayed screen is printed.
When this bit turns ON, the bit #02 of +1 in the system data area turns ON automatically.
While the bit #02 of +1 turns ON, hardcopy of the screen is being processed. Therefore, be careful not to perform Change Screen or Change to Offline.
When hardcopy is completed, the bit #02 of +1 turns OFF automatically.
However, since the bit #02 of +11 in the system data area does not turn OFF automatically, turn OFF the bit #02 of +11 on the host's side after the bit #02 of +1 turns OFF.
|
|
|
|
To cancel it in the middle of printing, |

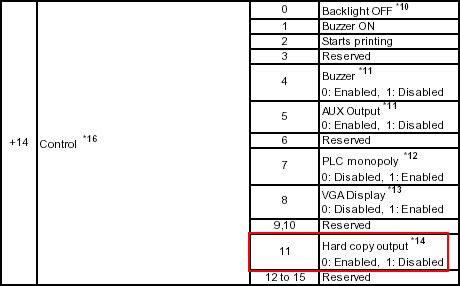

Turning ON the bit #11 of +14 in the system data area can cancel hardcopy.
However, since the bit #11 of +14 does not turn OFF automatically after cancellation, be sure to turn it OFF on the PLC's side.
![](images/print_system_area3.gif)
In the case of Memory Link Method, turn ON the bit #11 of +11 in the system data area. However, since the bit #11 of +11 does not turn OFF automatically after cancellation, be sure to turn it OFF on the PLC's side.
|
|
|
|
|
|
