Transferring with USB/Ethernet cable
Double click the shortcut on the desktop, or from the [Start] menu, click [All Programs]-[Pro-face]-[WinGP]-[WinGP].
You cannot transfer files while in offline mode. Make sure WinGP is in RUN mode.
On the GP-Pro EX state toolbar, click [Transfer Screen] to launch the transfer tool.
Confirm the project details in [Project Information]. To transfer a different project file, click the [Select Project] button and select the project file.

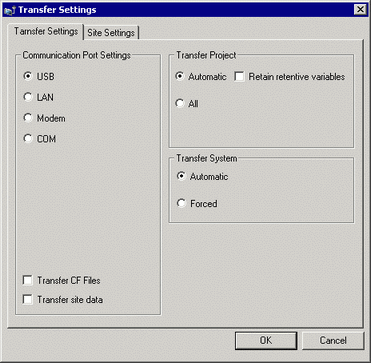

In the [Transfer Settings] area, confirm that the USB or LAN option is selected. If neither [USB] nor [LAN] is selected, display the [Transfer Settings] dialog box and in the [Communication Port Settings], select either [USB] or [LAN] and click [OK].
Modem transfer is not available.
Click [Send Project].
The following process is the same as the GP. See the following.
34.2 Transferring Project Files via USB Transfer Cable
34.3 Transferring Project Files via Ethernet (LAN)
When transferring via Ethernet (LAN), make sure you set the IP address from Properties of [My Network] of the IPC or PC/AT compatible machine - [Local Area Connection] Properties - [Internet Protocol (TCP/IP)] Properties. You cannot define the IP address in the WinGP offline mode.
Transfer using external storage
Exit WinGP. You cannot transfer projects while WinGP is running.

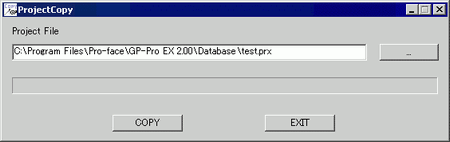

From the [Start] menu, click [All Programs]-[Accessories]-[Command Prompt]. ProjectCopy (copy tool) will start.
[ Project File]: Click the icon, and specify the GP-Pro EX project file (*.prx) stored in external storage or on the desktop.
[Copy]: Click to start transferring.
Copy complete message appears.
ProjectCopy (copy tool) transfers screen data only. Receiving screen data or full transfer of project is not available. In the following cases, please use the Transfer Tool.
The first time you transfer the project after installing WinGP
Change or add a Device/PLC
Change or add a font
After upgrading GP-Pro EX, the run-time system or protocol driver is updated and you update the project.
You cannot send the WinGP system program using the Copy Tool. Please use the Transfer Tool when you upgrade WinGP.
