Local windows are common windows that display on all screens.

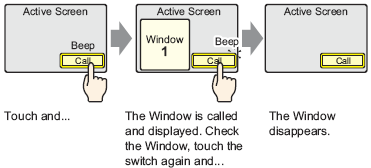

Touch the switch on the screen to display the window. Touch the switch again to close the window.
You can show or hide windows from the device/PLC by toggling a specified bit address ON/OFF.
The number of Local Windows that you can display simultaneously on a single screen varies depending on the model.
Maximum of 4: SP5000 Series, GP4000 Series (excluding the GP-410*), LT4000 Series, IPC Series
Up to 3: Models other than those above

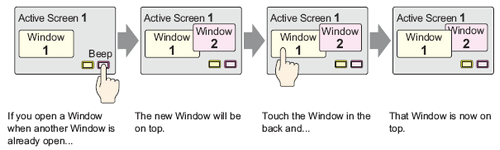

When using multiple Windows on a Base screen, the most recently displayed Window is on top. Touching a window hidden behind other windows will move the window to the front.
12.3.1 Procedure - Displaying Windows
