28.10.7.4 Emulate Touch Output

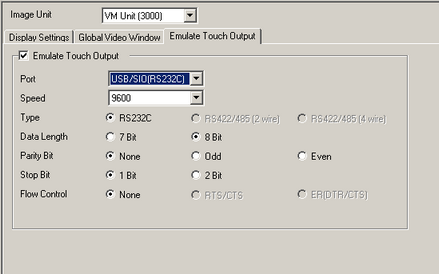

Emulate Touch Output

When you touch the current screen on the display unit with RGB input, you can select if you want to output touch coordinates to external devices over serial communication lines.
28.14 Computer's Mouse Cursor Operations from the Display Unit

Port

Select a port to perform the touch output from [COM1], [COM2] or [USB/SIO(RS232C)].

  • When specifying the port number to be used, mark ("Duplicate Port") is displayed.

Speed

Select a communication speed from [2400], [4800], [9600], [19200], [38400], [57600] or [115200].

Type

Select the communication method from [RS232C], [RS422/485 (2wire)], or [RS422/485 (4wire)].

Data Length

Choose the data length from [7 bit] or [8 bit].

Parity

Select the parity bit from [None], [Odd], or [Even].

Stop Bit

Select the stop bit from either [1] or [2].

Flow Control

Select the flow control from [None], [RTS/CTS], or [ER (DTR/CTS)].

  • When [Port] = [USB/SIO(RS232C)], [Flow Control] is [None].
