Please refer to the Settings Guide for details.
28.10.10 Image Sensor Display Settings Guide
For parts drawing process, please see the parts editing topic.
8.7.1 Editing Parts
To use the Image Sensor Display, you need to set up an image sensor on the device/PLC. For the setup procedure, see the "GP-Pro EX Device/PLC Connection Manual".
The following describes how to display the picture from an image sensor on the display unit screen in real time.
In the [Screen List] window, open the base screen where you want to display the picture.
From the [Parts (P)] menu, select [Image Sensor Display] or click
. Draw the part on the screen.

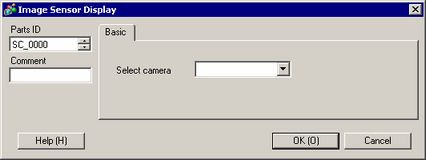

Double-click the new Image Sensor Display. The following dialog box appears.
In the [Select Camera] field, select the name of the image sensor to display.
The image sensor names in the [Select Camera] list are defined from the [System Settings] window's [Device/PLC] link, in the [Device Name] and [Indirect Device name] fields.
7.9.1 System Settings [Device/PLC] Settings Guide
