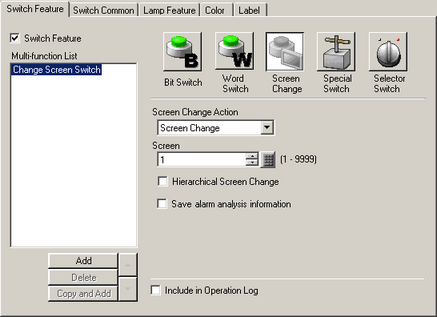

Screen Change Action
Select the Screen Change action.
Screen Change
Touch the Switch, and the screen changes (jumps) to the specified screen.
Previous Screen
Touch the Switch, and the previously displayed screen will reappear. For screens that are organized hierarchically, the screen one level up (the parent screen) will reappear.
From the [Project] menu's [System Settings], select [Display Unit]. In the [Display Settings] tab, if you select the [Reflect in Device/PLC] check box and set [Standby Mode] to [Screen Change], you cannot use the [Previous Screen] operation in a change screen switch to return to the screen defined in the [Change-To Screen in Standby Mode] field. Instead, you will return to the screen that was open prior to the previous screen. If this screen does not exist, the screen will not change.
In the [System Settings], click [Display Unit]. In the [Display] tab, when [Standby Mode]=[Screen Change], you cannot use a [Previous Screen] switch to return to the screen that displayed before the Standby Mode Time elapsed.
Screen
Specify the number of the Screen you want to display from 1 to 9999. This can only be set when [Screen Change Action] is set to [Screen Change].
Hierarchical screen change
You can set a level hierarchy to the Screen Change. This can only be set when [Screen Change Action] is set to [Screen Change]. A maximum of 32 levels can be set.
Save alarm analysis information
When you use the Alarm Analysis function, you can change screens while maintaining the alarm analysis state. This can only be set when [Screen Change Action] is set to [Screen Change].
For information on the Alarm Analysis function, please see the following.
20.11 Alarm Analysis for Operation Log and Sampling
