Please refer to the Settings Guide for details.
10.15 Switch/Lamp Parts Settings Guide
For details on how to draw parts, and defining the address, shape, color, and labels, please see the parts editing topic.
8.7.1 Editing Parts
Create a Radio Switch that contains a group of 3 Bit Address switches: M100, M101, and M102.
On the [Parts (P)] menu, point to [Switch Lamp], and select [Bit Switch (B)], or click to place a switch on the screen.
Double-click the placed Switch part. The following dialog box appears.
In [Select Shape], select the Switch shape.
Specify the one [Bit Address] (M100) that you want to operate when the switch is touched.
From [Bit Action] choose [Bit Set].
Click [Extended].
In [Group Feature], select [Group] and set the [Group No.]
As needed, set the color and display text on the [Color] tab and [Label] tab, and click [OK]. The switch that turns ON M100 is complete.
Depending on the shape, you may not be able to change the color.
When you select a switch and press the [F2] key, you can directly edit the text on the label. When [Text Table] is selected, you can change the current Text Table.

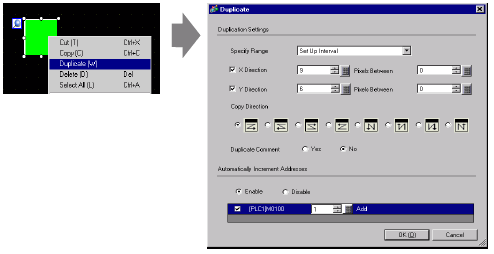

Select the created switch, right-click, and select [Duplicate (W)].
When the [Duplicate] dialog box appears, select [Set Up Interval] in [Input Range] and set [X Direction] = 3 and [Y Direction] = 1. Set [Automatically Increment Addresses] to [Enable], and confirm the increment amount is set to 1. This value is used to increment addresses from the original address of M100. Click [OK (O)].
For more details about Duplicate, please refer to 8.2.6 Duplicate.
Complete the Radio Switch with the consecutive 3 bit addresses in the same Group Number
To group multiple switches that have been created one by one on a screen, set the same number for each switch's [Group Number].
If you use [Duplicate], you can create a copy with incremental addresses based on the [Automatically Increment Addresses] and the increment setting.
