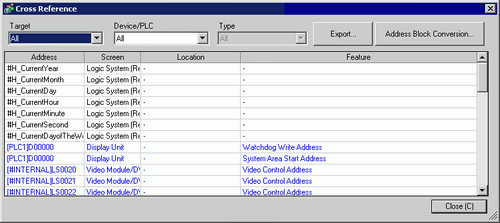

Displays the addresses used by screens and placed parts in a project.
Click
in the cell corresponding to each item name in the list to use the filter function.
is displayed beside the item name for the current filter.
Target
Select the items to display in the cross reference from [All], [Current Screen], [Base Screen], [Window Screen], [Keypad Screen], [Image Unit Window Screen], [Header/Footer], [Logic Screen], [I/O Screen], [Alarm], [Sampling Settings], [Enhanced Recipe], [Recipe], [Security Settings], [Operation Log Settings], [Time Schedule Settings], [Sound], [Text Table], [Global D-Script], [Extended Script], [User-Defined Function], [Operation Log], [Backlight Color Settings], [Global Function Settings], [System Settings], and [Clock Update Settings].
Items you can select differ between models.
Device/PLC
Select the contents to display on the Cross Reference from [All], [Symbol Variable], [PLC1] (device/PLC), [#INTERNAL] (internal device address), or [#MEMLINK] (only when using memory link).
Type
Select the address type to display, from [All], [Bit Address], [Word Address], [Bit Variable], [Integer Variable], [Float Variable], [Real Variable], [Timer Variable], [Counter Variable], [Date Variable], [Time Variable], [PID Variable], [System Variable (Bit)], or [System Variable (Integer)].
Items you can select differ between models.
Export
Output the list of addresses to a CSV or text file. When filtering by [Target], [Device/PLC], or [Type], you can export the list of addresses.
When you click in the cell corresponding to an item name to filter the list, you cannot export the list of addresses.
Address Block Conversion
Displays the [Address Block Conversion] dialog box. Converts the addresses specified in a project as a block. There are two conversion methods: [Whole Project], which converts the addresses in the whole project as a block, and [Individual Settings], which sets and converts the screens individually.
3.9.4.1 Utility - Address Block Conversion
Address
Displays the address or symbol name in use.
Screen
Displays the screen numbers, Alarms, Common Settings' types in use.
Location
Displays the part ID, the address group, the block number, or line number associated with where the address is used.
Feature
Displays the usage of each address.
