This procedure is used when sending the first project to the display unit.
For more information about the Send function, please refer to 34.14.2 How Send/Receive Works.
The IP address preset at the time of purchase can be used to transfer data.
34.3.3 Transfer - Transferring Projects Using the Factory Set IP Address
Please refer to the Settings Guide for details.34.12 Settings Guide
If transfer is not successful even though the steps are followed, refer to the following.Maintenance/Troubleshooting Guide, T.2.4 Unable to transfer project (Ethernet cable)
Connect the LAN cable to the display unit to establish the network with the PC installed with GP-Pro EX. (Set up the same network IP address on your PC.)
Turn ON the display unit. The [Initial Start Mode] screen appears. (When using the GP4000 Series, LT4000 Series, SP5000 Series, or the IPC Series, the [Welcome] screen appears.)
The [Initial Start Mode] screen or the [Welcome] screen is the first screen that appears after turning on the display unit immediately after purchase. After transferring a project once, this screen will not appear.
To change the Ethernet settings after transferring the project, do so in offline mode on the display unit.Maintenance/Troubleshooting Guide, M.4.1 Assigning an IP address to the Display.

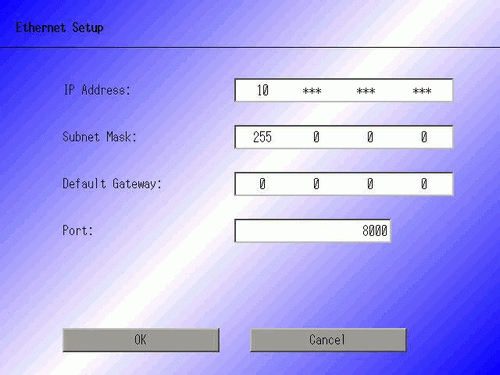

Set the IP address on the display unit. Touch [Ethernet Setup] to display the following screen and the contents defined when transferring.
The initial value for the IP address depends on the individual model.
Modify the IP address, subnet mask, and touch [OK].
(For example, first display unit: [IP Address] 192.168.0.1, [Subnet Mask] 255.255.255.0)
Also set the same network IP address to the other display units.
The confirm restart message appears. Touch [Yes] and the system restarts.
After restarting, the [Initial Start Mode] screen (or the [Welcome] screen) appears again.
On the GP-Pro EX status bar, click the Transfer Project icon
and launch the Transfer Tool.
Confirm the project details in [Project Information].
To transfer a different project, click the [Select Project] button and choose the appropriate project.
Click [Transfer Setting] to display the [Transfer Tool] dialog box. Ensure that [Communication Port Settings] is set to [LAN]. Select the [LAN Auto Setting] check box and click [OK].
You can also open the same dialog box from GP-Pro EX's [Project (F)] menu by selecting [Transfer Project (G)] and then [Transfer Settings (C)].

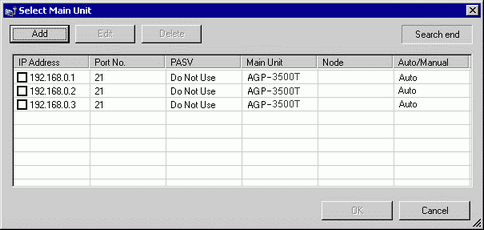

Click [Send Project]. The [Select Display Unit] dialog box displays the IP addresses of the display units available on the network.
Detects the display units connected to the same subnet mask as the PC.
If the IP address is not automatically detected, click [Add] and manually enter the IP address. You can change the port number when using the IPC Series or SP5000 Series Open Box.
If you cannot transfer because of firewall or router restrictions, selecting the [PASV] check box sometimes allows you continue with the transfer.
Select each IP address of the display unit to which you want to transfer and click [OK]. The transfer begins.
When multiple IP addresses are checked, the project is sent to multiple display units at once.
If a password is set for sending and receiving projects, a dialogue box opens and prompts you for a password.
If there is one password for sending and receiving parts for multiple display units, you can skip this step by clicking [Continue to Use the Password].
When the following dialog box appears, click [Yes]. (This dialog box does not display when sending the same project again.)

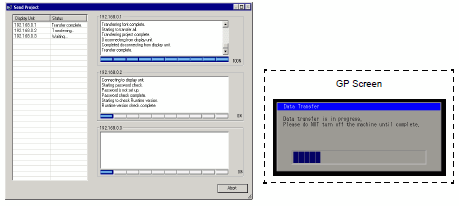

The following dialog box appears during transfer to check the communication status.
The following is an example of sending multiple projects.
(The display unit changes to Transferring mode and communication with the device/PLC is suspended.)
If you select multiple IP addresses, the project is transferred to one display unit, then the next, in sequence.
If a project file is password protected, transfer cannot start until the password is confirmed.
If you are transferring to multiple display units, you can skip this step by clicking [Yes to All].
You can cancel the transfer to all units by clicking [No to All].
When transfer is completed, the state of the dialog box changes from [Transferring] to [Transfer Complete].
Click [Close].
(The display unit is reset and the transferred project screen is displayed.)
Click [Close] to return to the Transfer Tool. Click [Close] again to close the Transfer Tool.
