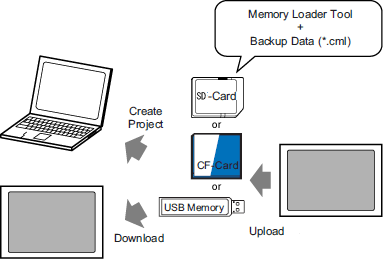

Without connecting USB or Ethernet cables, you can transfer project files between the display unit and your PC using external storage. These storage devices further allow you to copy files from one display unit to another.
Transfer from Computer to Display Unit
On the display unit, the project backup data stored on an external storage device is downloaded and displayed.
34.8.1 Transfer - Transferring Project Files from PC to Display Unit
Transfer from Display Unit to Computer
Uploads the backup data from the display unit to an external storage device and loads the data to the PC as a project file. You can also download and display the backup data on a different display unit.
To backup (upload) the project onto the display unit's external storage, or to move (download) the project from backup data in external storage, the Memory Loader Tool must also be saved to external storage.
"Memory loader tool" varies depending on the used external storage. You cannot use memory loader tool for CF cards (or SD cards) saved in [CF Card Folder] (or [SD Card Folder]) by copying to a USB storage. The same applies to copying a memory loader tool from a USB.
Supported external storage devices differ depending on the model.1.5 Supported Features
When using the IPC Series, the memory loader tool cannot be used, but it is possible to transfer just screen data using external storage. For more details, please refer to the following.38.3.4.1 When Using Different Computer for Running WinGP
Refer to the following when using the SP5000 Series Open Box.39.2.2 Transfer - SP5000 Series Open Box
