Summary
Draws a rectangle at the designated position. When you select the [Pattern] check box, draws a filled rectangle.

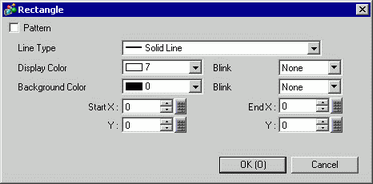

Select and enter the line type (or fill pattern when selecting a pattern), color attributes, and start and end coordinates.
Format
dsp_rectangle (Start Point X Coordinate, Start Point Y Coordinate, End Point X Coordinate, End Point Y Coordinate, Display Color Blink + Display Color, Background Color Blink + Background Color, Pattern and Line Type)
When both black and Blink are set, the background color becomes transparent.
The following positions are the starting coordinate point when a display unit's orientation is set to [Portrait].
Display units except GP-4100 Series: Bottom-left of the screen is (0,0)
GP-4100 Series: Top-right of the screen is (0,0)
For more details, please refer to the following.
3.10.1 Restrictions for Screen Display
When using colors in the draw functions, set the color codes from 0 to 255. If you set E1 to E12 and save the script, an error occurs.
