25.11.8.3 Print (Custom Settings)/Data Settings

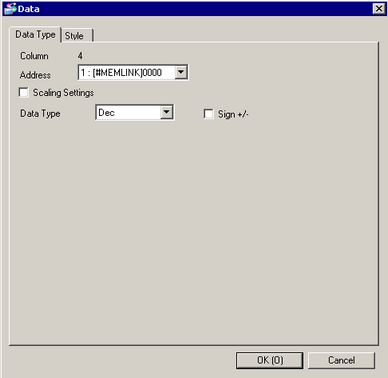

Column

Displays the selected column's number.

Address

Displays the selected column address. Display the list and you can change the registered address in the sampling group.

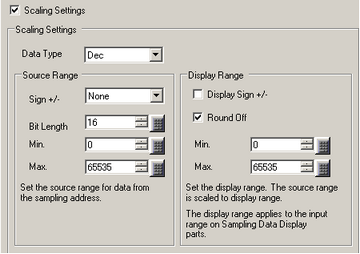

Scaling Settings

Specifies if you want to configure scaling settings. If designated, the following setting items will appear.

The [Source Range] and [Display Range] values are the same as in the [Data Settings] dialog box, available in the [Basic Settings] option when you click [Data Type].
25.11.7.1 Print / Data Settings - Data Type

Data Type

Choose the data type from [Dec], [BCD], [Hex], or [Float].

[Float] can only be selected when the set [Bit Length] is [32 Bit] on the [Address] tab.

When [BCD] is selected, sampling data that contains the digits A-F (hexadecimal) rather than BCD is printed as "----" (Number of digits "-").

Sign +/-

Designate whether or not to attach a minus sign to data. This can only be set when the [Data Type] is [Dec].

This is fixed when the [Data Type] is [Float].

Round Off

Designate whether or not to round off fractional values when converting input values to the display range. Fractional values are truncated if rounding off is not selected. This setting is available when [Data Type] is [Float].

25.11.8.3 Print (Custom Settings)/Data Settings - Data Type
