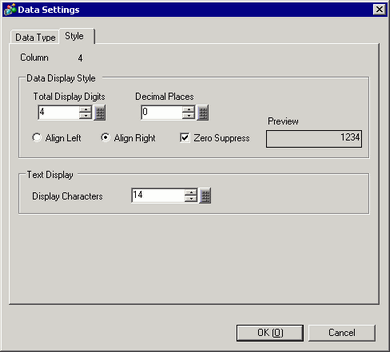

When the data type is [Word 8 Bit]/[Word 16 Bit]/[Word 32 Bit]
Column
Displays the number of the selected column.
Total Display Digits
Select the number of display digits for the data from 1 to 17. You can specify up to the number of [Display Characters]. The numbers displayed after the decimal point are also included in the number of digits.
(For example, Total Display Digits is "5", and the Decimal Places is "2")
Decimal Places
Set the number of display digits after the decimal point, from: 0 to [Total Display Digits]-1.
This cannot be set when the [Data Type] is [Hex].
Align Left/Align Right
Select the data display position.
Zero Suppress
If this option is selected, leading zeros are not displayed.
For example, Number of Display Digits = 4
Preview
Preview the selected style.
Display Characters
Set the number of characters to be displayed in the Data column cells, up to 100 single-byte characters.

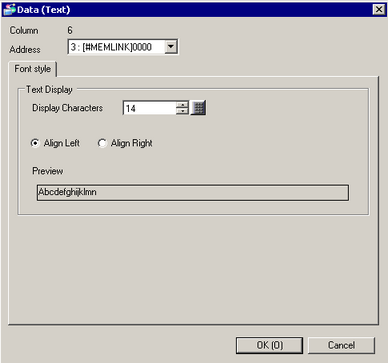

If the data type is [Bit]/[Text]
If you selected [Enable multiple data types] in the [Address] tab, when you select a column with [Bit] or [Text] data types and click [Detailed Settings], the following dialog box opens.
Column
Displays the selected column's number.
Address
Displays the selected column address. You can change the registered address of the sampling group from the list.
Display Characters
Set the number of characters to be displayed in the Data column cells, up to 100 single-byte characters.
Align Left/Align Right
Select the data display position.
Preview
Preview the selected style.

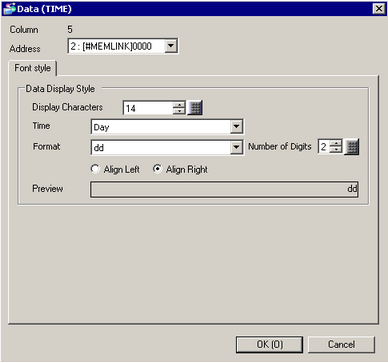

When the data type is [TIME]/[DATE]/[TIME_OF_DAY]/[DATE_AND_TIME]
If you selected [Enable multiple data types] in the [Address] tab, when you select a column with [TIME], [DATE], [TIME_OF_DAY], or [DATE_AND_TIME] data types and click [Detailed Settings], the following dialog box opens.
Column
Displays the selected column's number.
Address
Displays the selected column address. You can change the registered address of the sampling group from the list.
Display Characters
Set the number of characters to be displayed in the Data column cells, up to 100 single-byte characters.
The minimum number of characters varies depending on the setting in the [Data Display Style].
Example: If [Preview] is [yyyy-mm-dd], the minimum is 10 single-byte characters.
Timer
Select a timer item to display.
This option is available when [Data Type] is [TIME].
Date
Specify whether or not to display date. If so, select a date item to display.
This option is available when [Data Type] is [DATE_AND_TIME].
Time of day
Specify whether or not to display time of day. If so, select a time of day item to display.
This option is available when [Data Type] is [TIME_OF_DAY]or [DATE_AND_TIME].
Format
Select the display format for the item selected for the [Timer], [Date], or [Time of day].
Number of Digits
Specify the number of digits for the first item.
This option is available when [Data Type] is [TIME].
Align Left/Align Right
Select the data display position.
Preview
Preview the selected style.
