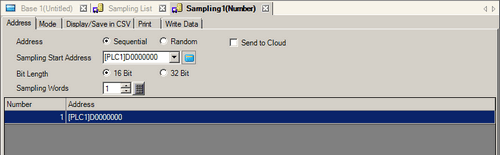

Addressing
Select the designation method for the addresses.
Sequential
Set the sequential addresses starting from the designated [Sampling Start Address].
Random
Set up to 512 addresses independently.
25.11.2.2 Address Settings / Random
25.11.2.3 Mixed Address Settings and Random Data Formats
Sampling Start Address
Designate the top address to sample data.
In addition to a device/PLC address or display unit's internal device address, you can set up a symbol, variable, or system variable.
When defining a variable as the address, use an integer array.
Bit Length
Choose which bit length the designated address data will be stored as, from either [16 Bit] or [32 Bit].
If you change this setting, contents on the [Display/Save in CSV] tab and [Print] will be reset.
If the defined [Sampling Words] is above 256, all addresses above 256 will be deleted when you change the [Bit Length] from [16 Bit] to [32 Bit].
Sampling Words
Set the number of data items (number of addresses) to sample. Each [Bit Length] has a different size range.
16 Bit: 1...512
32 Bit: 1...256
Send to Cloud
Select this option when transmitting sampled data to cloud services. For more details, please refer to the following.
25.11.2.3 Mixed Address Settings and Random Data Formats
Address List
The number of addresses in [Sampling Words] are displayed in a list, starting from the designated [Sampling Start Address].
If you run Address Block Conversion or other features that cause the address to exceed the device range, it is replaced with hyphens (-----).
