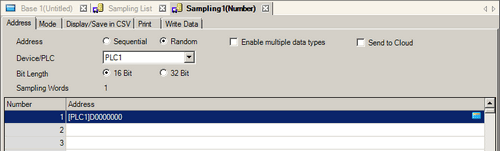

You can retrieve data from non-sequential addresses.
When you change between [Random] to [Sequential], all address fields and the [Display/Save in CSV] and [Print] settings are initialized.
If [Random] is selected, it will take longer to communicate with the device than when [Sequential] is selected.
Enable multiple data types
If you want to sample data with multiple data types , refer to the following.
25.11.2.3 Mixed Address Settings and Random Data Formats
Device/PLC
Specifies the sampling target, the device/PLC address or display unit's internal device address.
You cannot set up Symbol Variables and System Variables.
Bit Length
Choose which bit length the designated address data will be stored as, from either [16 Bit] or [32 Bit].
If you change this setting, contents on the [Display/Save in CSV] tab and [Print] will be reset.
If the defined [Sampling Words] is above 256, all addresses above 256 will be deleted when you change the [Bit Length] from [16 Bit] to [32 Bit].
Sampling Words
The set number of address will be displayed in [Address List].
Address List
The number of addresses in [Sampling Words] are displayed in a list, starting from the designated [Sampling Start Address]. Each [Bit Length] has a different size range.
16 Bit: 1 to 512 rows
32 Bit: 1 to 256 rows
To delete a row from the address list, right-click the row and select [Delete]. Or press the [DELETE] key. In the [Delete Confirmation] dialog box, click [Yes (Y)] to remove the settings. The deleted row becomes blank. The rows below the deleted row do not shift up.
If you run Address Block Conversion or other features that cause addresses to exceed the device range, they are replaced with the maximum device address.
