25.9.1 Procedure - Transferring Sampled Data to FTP

This example shows how to set up the project to save sampled data to the SD card in CSV file format and transfer that data every 30 minutes to the FTP server.

  1. From [System Settings], select [Peripheral Settings], then [FTP Server]. Click [New] and register the FTP server to connect.

  2. From [Common Settings], open the [Sampling Settings], add a sampling group and set up saving sampled data as CSV files.

    For information on how to configure sampling groups, refer to the following.
    25.6.1 Procedure - Collecting, Searching, and Sorting Various Data

    For information on configuring save to CSV, refer to the following.
    25.7.1 Procedure - Saving Sampled Data to CSV Files

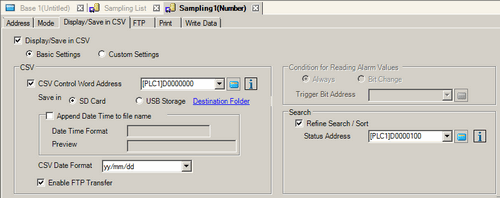

  3. Open the sampling group's [Display/Save in CSV] tab. Select the [Enable FTP Transfer] check box to display the [FTP] tab.

  4. In the [FTP] tab's [FTP Server] list, select the destination FTP server for the CSV file, and set the [FTP Transfer Trigger] to [1: Undetermined].

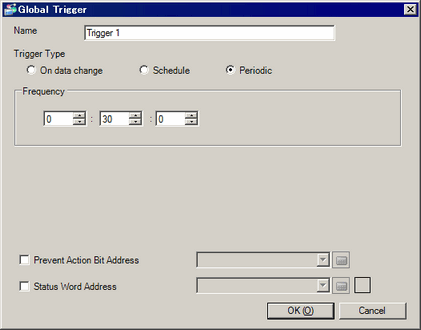

  5. From the [Common Settings] menu open the [Global Trigger] table. Select row 1 and click [Edit].

  6. From the [Global Trigger] dialog box, set [Trigger Type] to [Periodic] and [Frequency] to 30 minutes. Click [OK] to close the dialog box.
