To display data in a Special Data Display [Show CSV], you need a Special Data Display [File Manager] to select files to display. Display the CSV data on the CF card.
A Special Data Display [File Manager] appears using a Special Window or Local Window. If the maximum number of windows are already displayed, the File Manager does not appear. Close another window and touch the [File Manager] display switch again.
12.9 Displaying Multiple Windows on a Single Screen

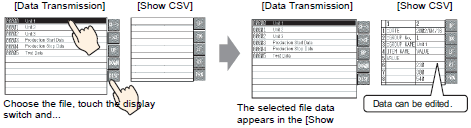

Only when displaying Recipe CSV data, can you select a file in a Special Data Display [Data Transmission] instead of [File Manager].
CSV Data Dislay Method

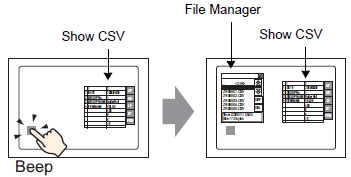

Touch the File Manager Display Switch to call up [File Manager] on the display unit screen.
Touch the display switch again to close the [File Manager].

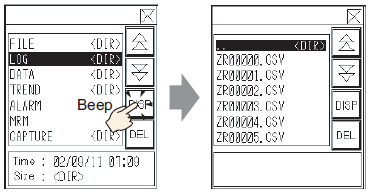

Selecting the folder and touching the [DISP] key displays a list of all the files in the folder.
To navigate to a higher level in the folder list, from the first line select [.. <DIR>] and touch the [DISP] key.
Select a file, and then touch the [DISP] key to view the file in the [Show CSV] dialog box.
In the [File Manager], if you select files that are not CSV files and then touch the [DISP] key, those files do not appear in the [Show CSV] part.
If the CF Card is removed or the cover of the CF Card slot is opened while the CSV file displays, the [Show CSV] dialog box is cleared.
Switching screens clears the [Show CSV] display.
The screen position of Special Data Display [File Manager] can be changed.
If the [File Manager] Display runs off the screen at a specified position, the coordinates adjust so that the entire window displays.
For the touch panel technology on your display unit, refer to its hardware manual.
Display units with analog touch panel technology
Display units with analog or PCAP Technology touch panel technology
Touch the top of the [File Manager].
Touch the position on the screen where you want to move the object.
The [File Manager] moves to the specified location.
Display units with matrix touch panels (2-point touch)
First, touch the top of the [File Manager].
Next, touch a position on the screen and the [File Manager] moves to that position.
First, if you touch a different switch and do not release the touch, the move operation is the same as 1 point touch.
Touch the top of the [File Manager].
Release the touch from the [File Manager], then touch its new position on the screen.
The [File Manager] moves to the specified location.
