Lamp Feature
Set whether or not to use the lamp feature.
When combined with the Switch feature, you can create a Switch that changes color and label depending on the designated bit address state.

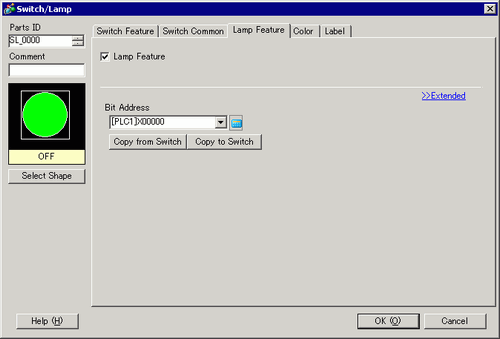

Bit Address
Specify the bit address to turn ON/OFF the lamp.
To set three or more colors for a lamp using multiple bit addresses or Word addresses, set them in the [Extended] dialog box.
When using multiple bit addresses:
13.8.2 Lamp Feature - Extended / Bit Address
When using a word address:
13.8.3 Lamp Feature - Extended / Word Address
Copy from Switch
The [Switch Feature] tab's [Bit Address] setting is copied to the [Lamp Feature] tab's [Bit Address]. This is used when setting a Lamp Feature and Switch Feature to the same address.
Copy to Switch
The [Lamp Feature] tab's [Bit Address] setting is copied to the [Switch Feature] tab's [Bit Address]. This is used when setting a Lamp Feature and Switch Feature to the same address.
