From the [Parts (P)] menu, point to [Data Display (D)] and select [Numeric Display (N)], or click the
icon, and place it on the screen.
Double-click the placed element. The Data Display dialog box appears.
Click [Select Shape] and select the appropriate shape.
In [Monitor Word Address], set up the address to store the numeric value.
In the [Data Type] drop-down list, set the type of data to display.
Select the [Allow Input] check box. Once you select the [Allow Input] check box, the [Data Entry] tab appears and you can enter numeric data.

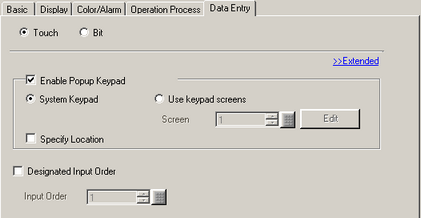

Click the [Data Entry] tab and the following appears. Select the [Enable Popup Keypad] check box.
If required, set the Data Display color and labels on the [Color/Alarm] tab and the [Display] tab, and click [OK].
