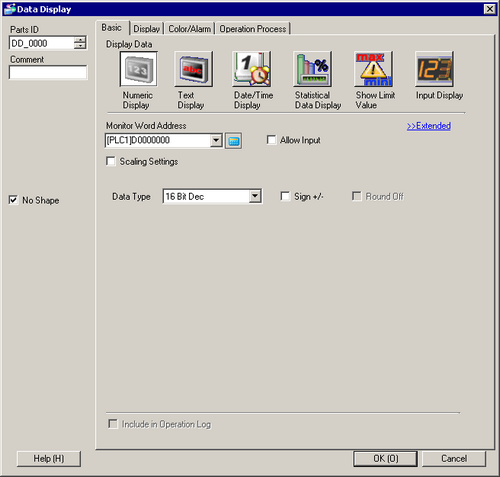

Parts ID
Parts are automatically assigned an ID number.
Data Display ID: DD_ **** (4 digits)
The letter portion is fixed. The number portion can be modified from 0000 to 9999.
Comment
The comment for each Part can be up to 20 characters.
Shape Display
Displays the shape and status of the Part selected in [Select Shape].
Select Shape
Open the Select Shape dialog box to choose the Part shape. You can select a shape when [No Shape] is deselected.
No Shape
Select whether the part will be transparent with no shape.
Display Data
Select the Data Display type.
Numeric Display
Displays the numeric data stored in the word address.
14.11.1 Numeric Display
Text Display
Displays the character string stored in the word address.
14.11.2 Text Display
Date/Time Display
Refers to the clock data of a display unit and displays the date/time.
14.11.3 Date/Time Display
Statistical Data Display
Takes statistics from the successive values of multiple word addresses, and displays the numeric value.
14.11.4 Statistical Data Display
Show Limit Value
Displays the set Alarm values (the displayed data's upper/lower limit values) on the same screen as a Numeric Display part with alarms set.
14.11.5 Show Limit Value
Input Display
Display data being input from the keypad.
14.11.6 Input Display
