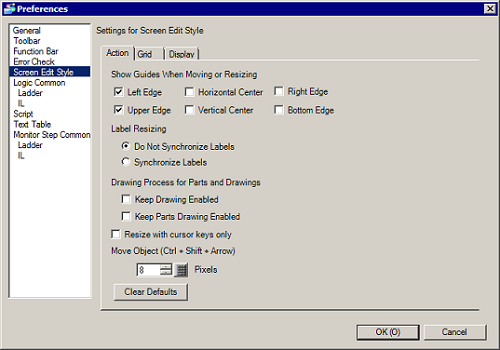

Show Guides When Moving or Resizing
This function is valid when aligning an object with a previously placed object.
Guidelines are displayed at the designated points (the left edge and upper edge).
Label Resizing
It specifies if a part's label should change with the part's dimensions.
Do Not Synchronize Labels
The label (text) size is not changed.
Synchronize labels
The label (text) dimensions are also changed.
If you change the size of a part while pressing the [Ctrl] key, it will reverse the action set in [Label Resizing].
Drawing Process for Parts and Drawings
Specify whether drawings and parts can be placed continuously when they are created.
If you cancel continuous placement, right-click on the unused screen area, or select the menu and icons of other features.
Clear Defaults
Right-click Draw/Parts, and from the menu, reset the default attributes of Draw/Parts set in [Set as Defaults of Parts].
Resize with cursor keys only
With the cursor on a drawing/parts handle, you can use the [↑], [↓],[←] and [→] keys to increase or decrease the object's size by one dot.
Move Object
Sets the single move dot number whenever an object is moved by pressing the [Ctrl] and [Shift] keys with the arrow keys. The setting cam be set from 2 to 40 dots.
When using the GP3000 Series, LT3000 Series, and ST3000 Series, depending on the part, X-coordinate movements may be restricted to four-pixel increments. For more details, please refer to the following.
8.15.2 Editing Restrictions
