42.6.1 Procedure - Saving the Current Screen at Run time (Screen Capture)

Please refer to the Settings Guide for details.
5.4.4.2 Display Unit [Mode] - Screen Capture

Configure settings to capture the current screen on the display unit. (Use "D100" as the control address for the capture.)

From the [Project] menu, select [System Settings], and click [Display Unit] to open the [Mode] tab.

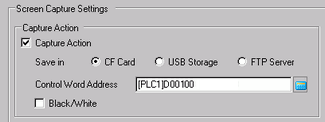

From [Screen Capture], select the [Capture Action] check box. In [Save in] select [CF Card].
- Supported external storage devices vary depending on the model.
  1.5 Supported Features
- To save to a FTP server, from [Project] menu select [System Settings] and click [FTP Server Settings] to register the FTP server.
In the [Control Word Address] enter D100.
After storing the file number in [Control Word Address]+2 (D102), the bottom bit (Bit 0) in the [Control Word Address] D100 turns ON and the screen capture is run. (In the file name [CP*****.jpg], the asterisks represent the file number.

For the screen capture, three consecutive words will be used starting from the specified [Control Word Address].
When the screen capture is successful, bit 1 in [Control Word Address]+1 (D101) turns ON. Confirm the bit is ON, and then turn OFF Bit 0 of D100.
