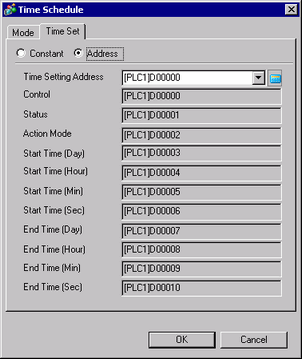

Time Setting Address
Designates the top address used to store time settings data read out from a device/PLC. The 10 word addresses are automatically allotted.
24.4.4.1 Time Setting Address Details
Control
Reads out the Mode, Start Time, and End Time.
Status
Turns a bit ON after the [Control] time data readout is completed or if the time data entered is incorrect.
Action Mode
Designates [Enable Termination Action] and [Setting on Individual Day].
24.4.3 Time Schedule - Time/Constant
Start Time (Day)
Designates the start day.
Start Time (Hour)/Start Time (Min.)/Start Time (Sec.)
Designates the start time.
24.4.4.1 Time Setting Address Details
End Time (Day)
Designates the end day.
End Time (Hour)/End Time (Min.)/End Time (Sec.)
Designates the end time.
