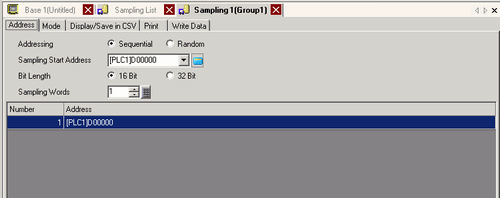

Addressing
Select the designation method for the addresses.
Sequential
Set the sequential addresses starting from the designated [Sampling Start Address].
Random
Set up to 512 addresses independently.
25.9.2.2 Address Settings / Random
25.9.2.3 Mixed Address Settings and Random Data Formats
Sampling Start Address
Designate the top address to sample data.
In addition to a device/PLC address or display unit's internal device address, you can set up a symbol, variable, or system variable.
When defining a variable as the address, use an integer array.
Bit Length
Choose which bit length the designated address data will be stored as, from either [16 Bit] or [32 Bit].
If you change this setting, contents on the [Display/Save in CSV] tab and [Print] will be reset.
If the defined [Sampling Words] is above 256, all addresses above 256 will be deleted when you change the [Bit Length] from [16 Bit] to [32 Bit].
Sampling Words
Set the number of data items (number of addresses) to sample. Each [Bit Length] has a different size range.
16 Bit: 1 to 512
32 Bit: 1 to 256
Address List
The number of addresses in [Sampling Words] are displayed in a list, starting from the designated [Sampling Start Address].
If you run Address Block Conversion or other features that cause the address to exceed the device range, it is replaced with hyphens (-----).
