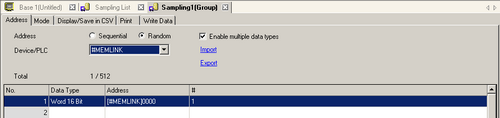

25.9.2.3 Mixed Address Settings and Random Data Formats

Enable multiple data types

Specify if you want to sample data with multiple data types.

If you uncheck the box, all rows are deleted.

Device/PLC

Specify the device/PLC for sampling.

Total

Displays the number of rows (the number of words) in use. The count does not include the rows that have no address.

Import/Export

Used to export/import the settings in the [Address] tab to/from a CSV file or a TXT file.
25.12.2 Import/Export Address Settings

Address List

For each row, specify the data type and address where the data is collected from. Based on the [Data Type] and [#], the system calculates the number of words.

• Data Type

You can select from [Bit], [Word 8 Bit], [Word 16 Bit], [Word 32 Bit], [Text], [TIME], [DATE], [TIME_OF_DAY], and [DATE_AND_TIME].

• Address

You can set the device address to the address specified in the [Device/PLC], display unit's internal device address, logic address (the variable when [Register Variable] is [Address Format]), or a system variable. You cannot use symbol variables.

• #

If the [Data Type] is other than [Text], enter the number of words you want to use sequentially.

Data Type	Setting Range
[Bit], [Word 8 Bit], [Word 16 Bit]	1 to 512
[Word 32 Bit], [TIME], [DATE], [TIME_OF_DAY]	1 to 256
[DATE_AND_TIME]	1 to 128

If the [Data Type] is [Text], specify the number of characters between 1 and 100. Use 1 word (1 row) for each 2 single-byte characters. (For example, if you want to sample data which contains 5 single-byte characters, use 3 words.)

If the [Data Type] is [TIME], [DATE], [TIME_OF_DAY], use 2 words (2 rows).
