For details about the setting screen, refer to the setting guide.
M.16.2.9 Main Unit - Remote Viewer Settings
Describes how to set up the GP-Viewer EX, Web Server, Camera-Viewer EX functions and Pro-face Remote HMI functions.
The following example uses GP-Viewer EX.
For details about the setting screen, refer to the setting guide.M.16.2.9 Main Unit - Remote Viewer Settings
Go to offline mode and touch [Main Unit Settings] on the item changeover switch.

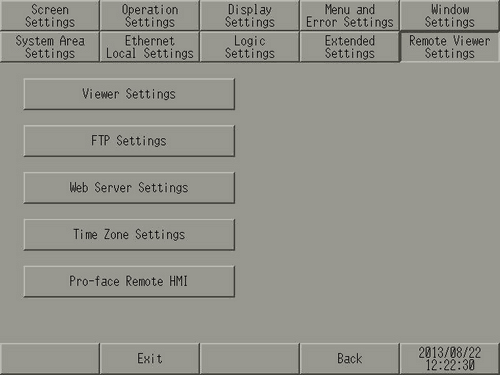

[Main Unit Settings] screen opens. Touch [Remote Viewer Settings].

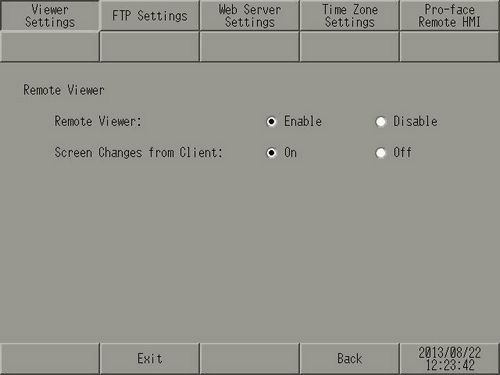

[Remote Viewer Settings] screen opens.
[Viewer Settings]. Select this option and then set [Remote Viewer] to [Enable] to use GP-viewer EX.
[Exit] saves the changes and restarts the display unit.
[Remote Viewer] settings can also be set in the GP-Pro EX [System Settings]. For more details, please refer to the following.37.20.2 System Settings - Display Unit - Remote Viewer Settings Guide
