30.13.3.4 Logic Monitor Functions - Address Search

Select the Address Type to display in the address monitor. You can check the values stored in each address. You can use it only in address format.

The address search has the following features.

Toolbar

Switch the toolbar show/hide at the bottom of the screen.

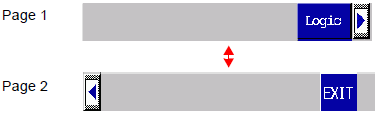

Click or to switch Page 1 with Page 2.

Exit

End the monitor.

Logic

Switch to the logic monitor.
