30.13.3.5 Logic Monitor Functions - Instruction List

Provides a list of instructions. Select the category to display all the lists and then select the relevant list.

The instruction list has the following features.

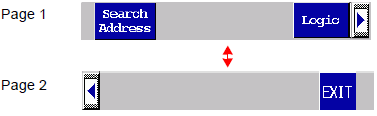

Toolbar

Switch the toolbar show/hide at the bottom of the screen.

Click or to switch Page 1 with Page 2.

Exit

End the monitor.

Logic

Switch to the logic monitor screen.
