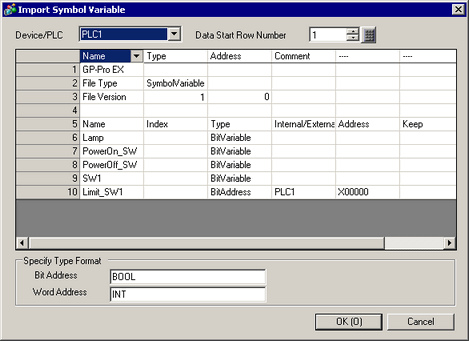

30.15.3 [Import Symbol Variable] Dialog Box Settings Guide

Device/PLC

Specify a device/PLC of the address set for the imported symbol variable.

Data Start Row Number

Specify the row number of the data to be imported. The row before the specified row number will not be imported.

Import Data List

Lists the details of imported files.

Select an item name from [Name], [Type], [Address] and [Comment] as import settings for each column.

[Name], [Type] and [Address] must be specified. Otherwise, import cannot be completed.
Item names cannot be duplicated. Please note that if you select the item name that has already been specified for another item, the name of that item will be changed.

Bit Address

You can import a specific address as a bit address from [Import Data List].

If you enter the text in [Type] in the Import Data List, all the relevant addresses are imported as bit addresses.

If the field is left blank, the address will not be imported as a bit address.

Example

if "BitVariable" is specified in the above screen, "Lamp", "Power Off Button", etc., are imported as bit addresses.

You can enter text up to 64 characters. The alphanumeric characters are case-sensitive.

Word Address

You can import a specific address as a word address from [Import Data List].

If you enter the text in [Type] in the Import Data List, all the relevant addresses are imported as word addresses.

If the field is left blank, the address will not be imported as a word address.

You can enter text up to 64 characters. The alphanumeric characters are case-sensitive.
