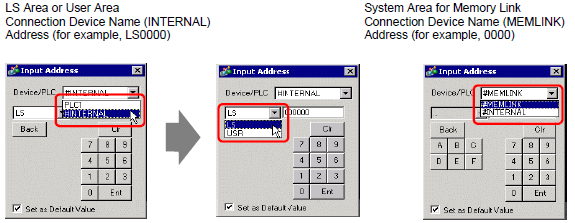

2.4.1 Minimizing the Load for Device/PLC Communication (Direct Access)If direct access is used to communicate with the connection device (PLC), you can specify the addresses for the LS area and user area.2.4.1 Minimizing the Load for Device/PLC Communication (Direct Access)
When memory link is used to communicate with the connection device (PLC), you can specify the addresses for the user area and memory link system area.2.4.2 Communicating with Unsupported Device/PLC (Memory Link)
Internal Address
This can be used when the symbol variable is a bit-address or word-address type.
[Symbol Variable] Window
Click the cell in the [Address] column and click
.
For the variable format, refer to the following.30.3.2.1 Registering Symbol Variables
[Address] Window
Select [Device Address], and in [Type], select [Bit Address (Bit Variable)] or [Word Address (Integer Variable)].
Click the icon to display the [Input Address] dialog box.
In [Device/PLC], select the connection device name and input the address of the model.
Logic
Double-click the operand and click to display the address input box.
In [Device/PLC], select the connection device name and input the address of the model.
