30.4.1.3 Copying Rungs

When you want to input the same instruction sequence in more than one rung, you can save time by copying the rung already created and pasting it in the rungs.

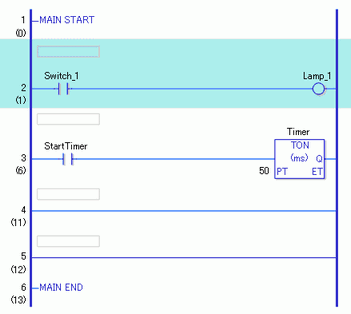

1. Select the rung number that you want to copy.




   • You can select a range to copy more than one rung at all once.
     30.4.1.7 Selecting Multiple Rungs

2. Click the icon .
   The selected rung is copied to the clipboard.



   • You can also copy a rung in either of the following ways.

   • Right-click and then click [Copy (C)].

   • Press CTRL+C.

3. Paste the copied rung in the desired location.
