30.4.1.5 Pasting Rungs

You can paste to the desired position rungs that were cut or copied.

Here, paste the copied rung between the 3rd and 4th rungs, for example.

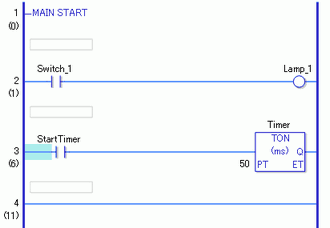

  1. Select a part (power bar or instruction) immediately above where you want to insert the rung.

    • By clicking a rung number and selecting the entire rung, the original rung will be replaced with the copied rung.

  2. Click the icon .

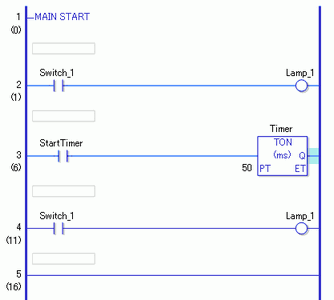

    The rung copied on the clipboard is pasted below the selected rung.
