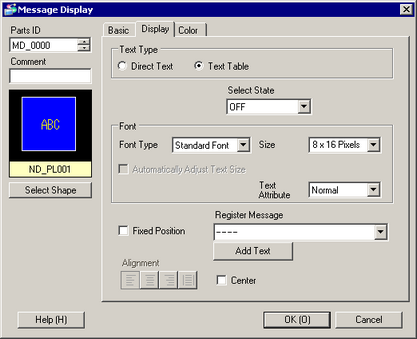

Text Table
Displays Text registered as a Text Table.
Select State
Type a message for each selected state. When the [Mode] field on the [Basic] tab is set to [Bit], ON/OFF will display. When the [Mode] field on the [Basic] tab is set to [Word], the state indication buttons (State 0 to State 15) appear according to the Number of Messages set.
Font
Set a font for the text.
Font Type
Choose a font type for the text from [Standard Font], [Stroke Font] or [Image Font].
Stroke Font and Standard Font
Standard Font
This bitmap font displays quickly, because it is composed of dots.
Stroke Font
This vector font maintains its shape when enlarged, because its shape is described with lines.
Automatically Adjust Text Size
If you select [Stroke Font], the [Automatically Adjust Text Size] option appears. By selecting this option, the font size adjusts automatically to fit the text in the part.
Size
Choose a font size for the text.
Standard Font
Specify "Width x Height" between [8 x 8] to [64 x 128] in 8 pixel units, or select a fixed size from [6 x 10], [8 x 13], [13 x 23]. When using fixed sizes, you can display only single-byte alphanumeric characters.
Stroke Font
6 to 127
When using [Automatically Adjust Text Size], define the [Maximum Size] and [Minimum Size] of fonts. The text font size is adjusted within this range.
Text Attributes
Select the text attributes.
Standard Font
Choose from [Standard], [Bold], [Shadow]
(When using the fixed font size [6x10], select either [Standard] or [Shadow].)
Stroke Font
Choose from [Standard], [Bold], [Outline]
Image Font
Window font will be converted to bitmap images and displayed on a display unit.
Select Font
Define the font, and set up the [Style], [Size], and [Font Set]. The properties you can define (Style, Size, and Font Set), differ between fonts.
Automatically Adjust Text Size
By selecting this option, the font size adjusts automatically within the set range to fit the text in the part. The settings range from 1 to 1638 points
Register Message
Select the text string from registered strings in the Text Table.
If you select [Add Text], you can type new text in the Text Table.
Add Text
Displays the [Add Text] dialog box where you can add new text in the Text Table.
You cannot [Add Text] when there is no number available in the Text Table settings, or the selected font does not exist in the OS when using image font.
Fixed Position
You can fix the display position of the Text. If you set the text to a fixed position, the Text Display area is fixed in the center of the Message Display.
Center
Displays the text in the center of the Text Display Area.
