18.9.3 Message Display

Text Display Area

The size of a Message Display's text display area changes according to the size specified in the Text Table ([Number of Characters] x [Number of Text Rows]). Even when the number of characters in the Text Table is smaller than the set [Number of Characters] x [Number of Text Rows], the text display area remains the same size.

For example, Number of Characters = 6, Number of Text Rows = 3

Center

Displays the text in the center of the Text Display Area.

If you specify the second row text in table 1, or the third row text in table 2, the text displays in the center of the display area.

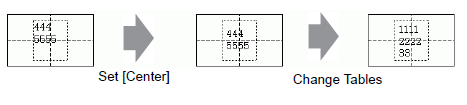

When [Center] is set:

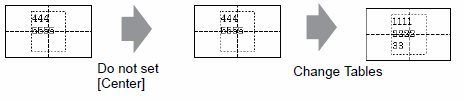

When [Center] is not set:

Align ([Align Left], [Align Center], [Align Right])

When multiple rows are set to the Text Table, the row with the largest number of characters (in the following example, the second row, "5555") is fixed and the other rows can be aligned to it with [Align Left], [Align Center], or [Align Right].
