8.5 Writing Text

Draw text on the drawing screen.

To draw text that changes depending on the selected display language on the display unit, use the text table. For settings, refer to 18.3 Changing Text to Other Languages.

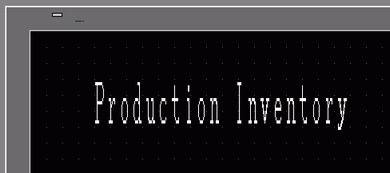

To place the text "Production Inventory" on the drawing screen.

1. From the [Draw (D)] menu, select [Text (S)] or click to place text on the screen.

2. When drawing text on the screen, the size of the input text frame is adjustable. Type your text and click [Enter]. (For example: Production Inventory)


3. Double-click the placed text and the [Text] dialog box will appear. Designate the font and size.

4. Click [OK] and the defined text is drawn on the screen.
