8.10.1 Registering Frequently Used Parts as Your Favorites

You can register frequently used parts in the [Package] window's [Favorites] list.

You can also combine multiple objects together for registration.

1. Open the [Package] window and select the [Favorite] package.




   • If the [Package] window is not on the workplace, from the [View (V)] menu, point to [Work Space (W)] and select [Package (K)].

   • After the application is just installed, opening the [Package] window displays the [Favorite] package. The next time the application is started, the [Package] window displays the last-used package.

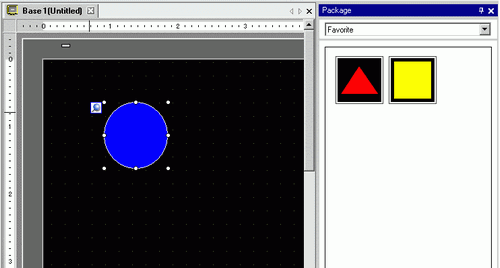

2. Select the figure to register, and drag it to the [Package] window.

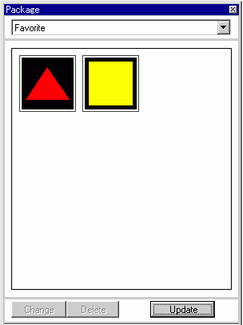

3. Package registration is complete.



   • To register the figure to a separate package, in the [Package List] dialog box, select [New] and create a new package.
     8.10.2 Registering Parts/Drawings in a New Package

   • When using models other than those from the GP-4100 Series, registration to the [Favorite(for GP-41** Series)] package is not possible.
