For details on the settings, see the following.
4.3 Startup Dialog Box4.4 Connection Dialog Box
For details on the settings, see the following.4.3 Startup Dialog Box4.4 Connection Dialog Box
Double-click the Camera-Viewer EX shortcut
, or from the [Start] menu, point to [Programs (P)], [Pro-face], [Camera-Viewer EX], and then click [Camera-Viewer EX].

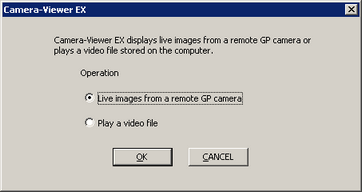

Camera-Viewer EX opens the startup dialog box.
Select the [Live images from a remote GP camera] option and click [OK]. The connection dialog box will appear.

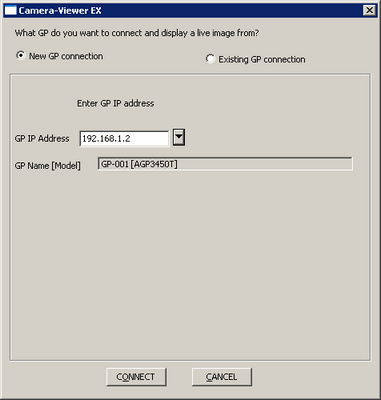

Enter the IP address of the display unit in the [GP IP Address] field. (For example, 192.168.1.2)
Click
[Pull-down] to search for display units on the network. After the search is complete, the dialog box lists the available display units.
Please consult your network administrator about mapping IP addresses.

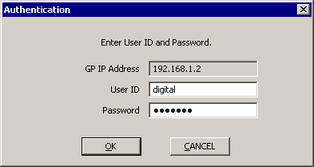

Click [Connect] and the authentication dialog box appears. Enter the user ID and password as specified in GP-Pro EX, then click [OK].
If the connection is allowed between Camera-Viewer EX and the display unit, video camera images from the display unit will now appear in Camera-Viewer EX.
